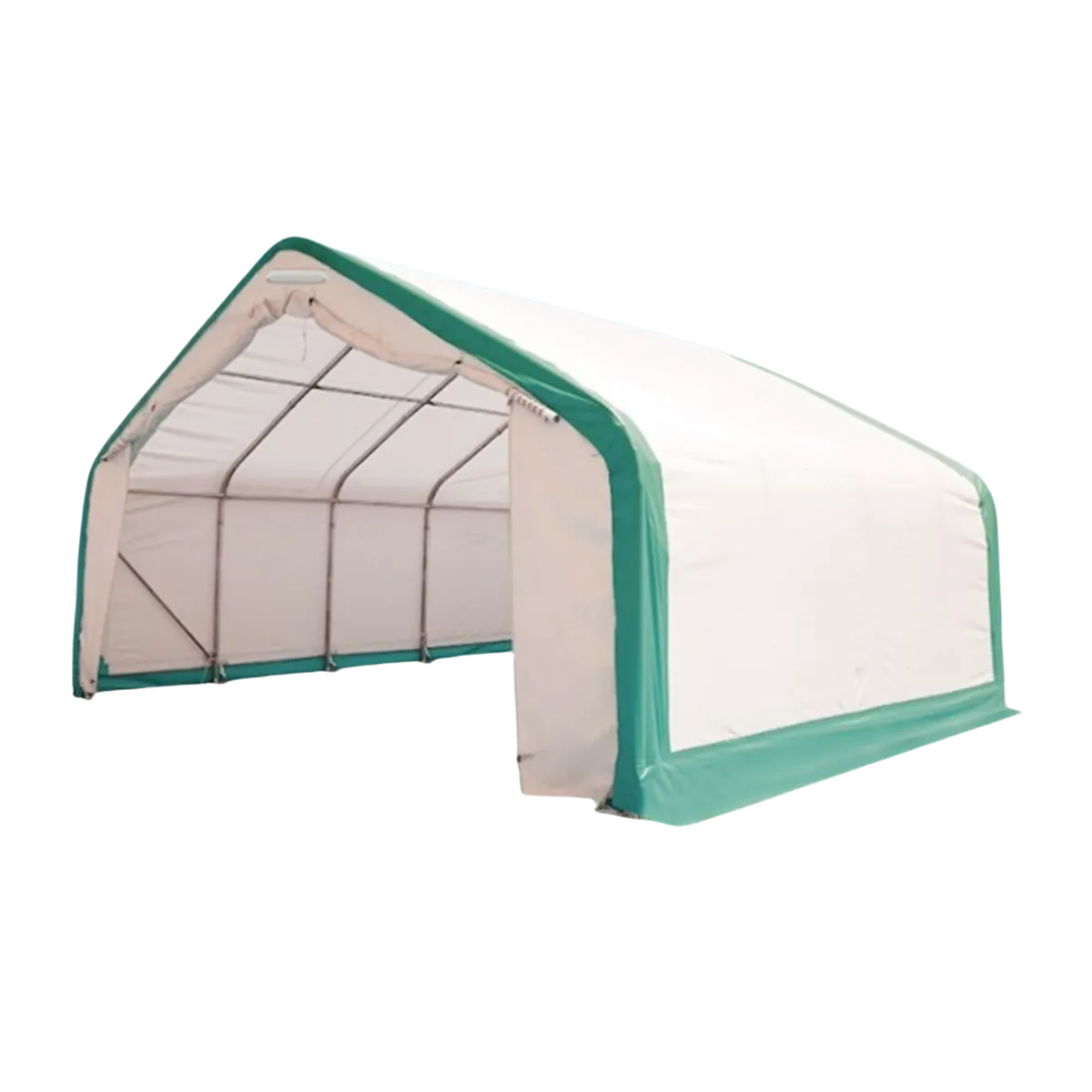

The Gold Mountain Storage Shelter W20’xL20’xH12’ is essential for storage and protection, ideal for agriculture, automobile storage, events, and more. Its steel construction withstands up to 50 mph winds, heavy snow, and extreme weather. Perfect for covering cars, boats, RVs, buses, campers, equipment, tools, and supplies, this Single Truss Storage tent is a versatile and durable solution for various needs.
The peak shelter helps snow to slide off faster. The PVC fabric is stronger than PE and is therefore more resistant to weather effects. Plus, PVC has a longer lifespan.

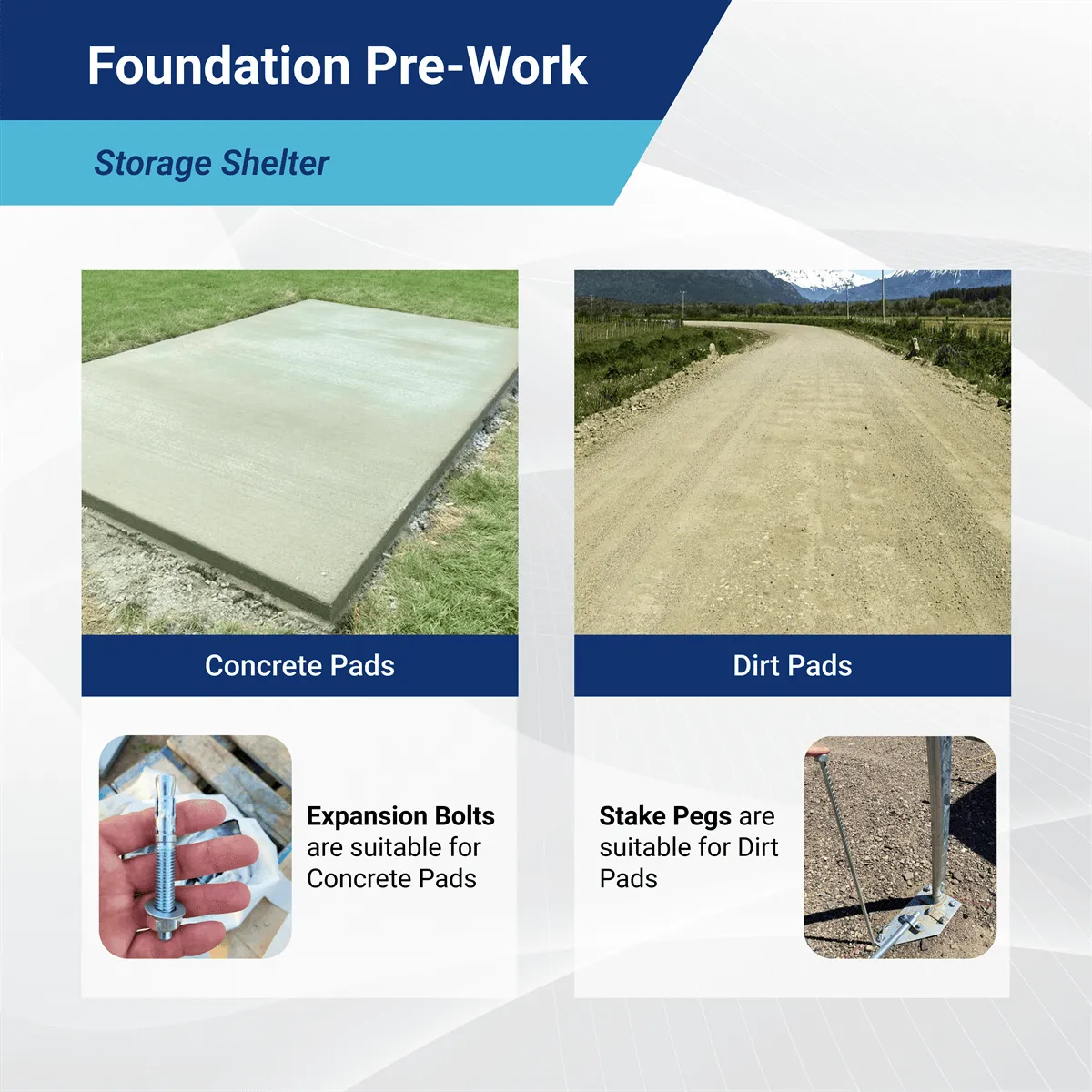

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Specifications
| Description |
Specifications |

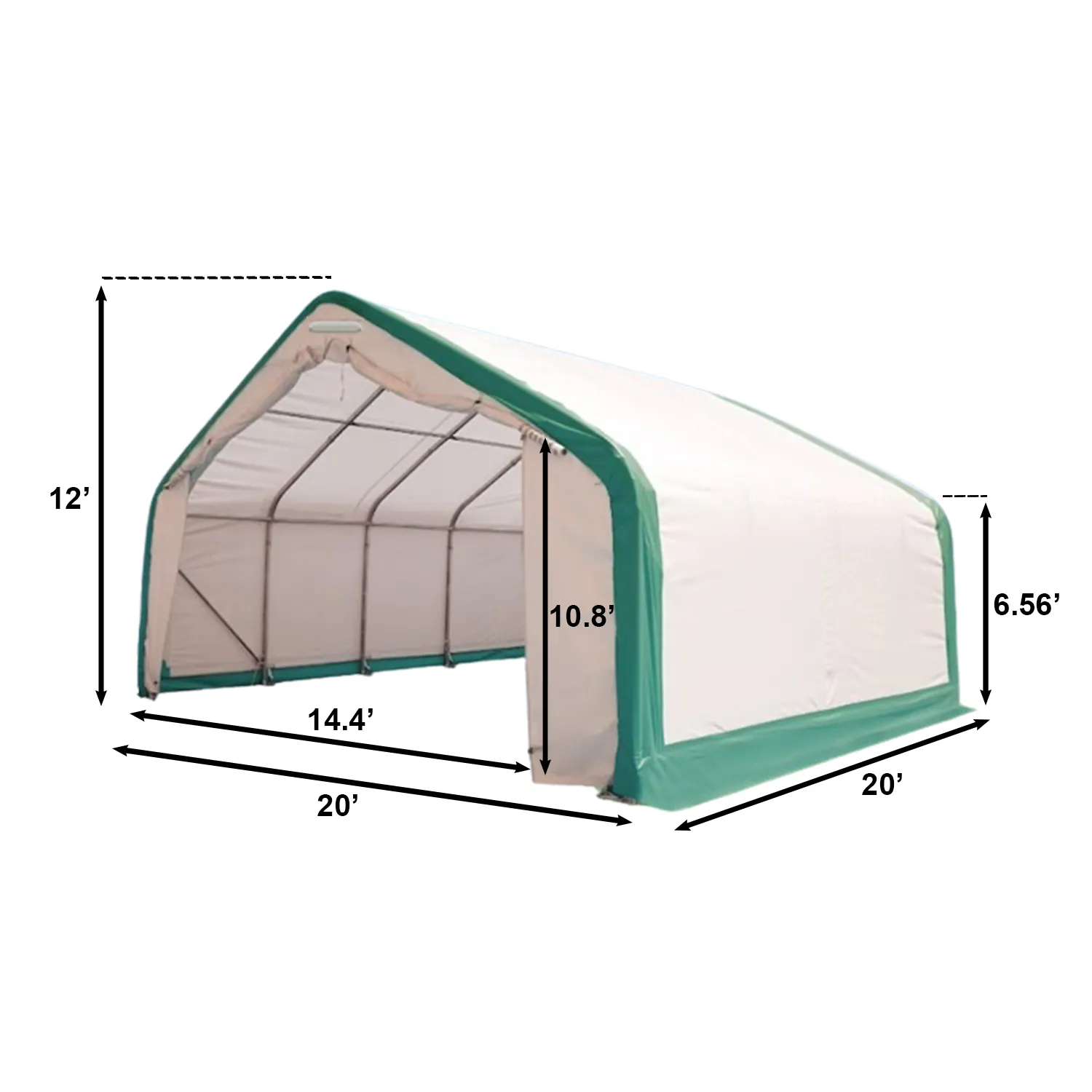

| Dimensions (WxLxH) | 20’x20’x12’ |
| Side-wall Height | 6.56 ft |
| Door size (WxH) (Front & Rear) | 14.4’x10.8’ |
| Door Type | Zipper Rollup Door |
| Frame | Single Truss Galvanized Tube |
| Steel Frame | Hot Dip Galvanized Steel |
| Truss tube | 16 Gauge |
| Tarp Fabric | PE or PVC |
| Tarp Color (customizable) | White with Green/Red Edge |
| Temperature resistance | -22 - 158 °F |
| Arch Ø | Φ 70x42x1.5mm |
| Purlin Ø | Φ 40x1.2mm |
| Arch Spacing | 5 ft |
| Number of Arch | 5 |

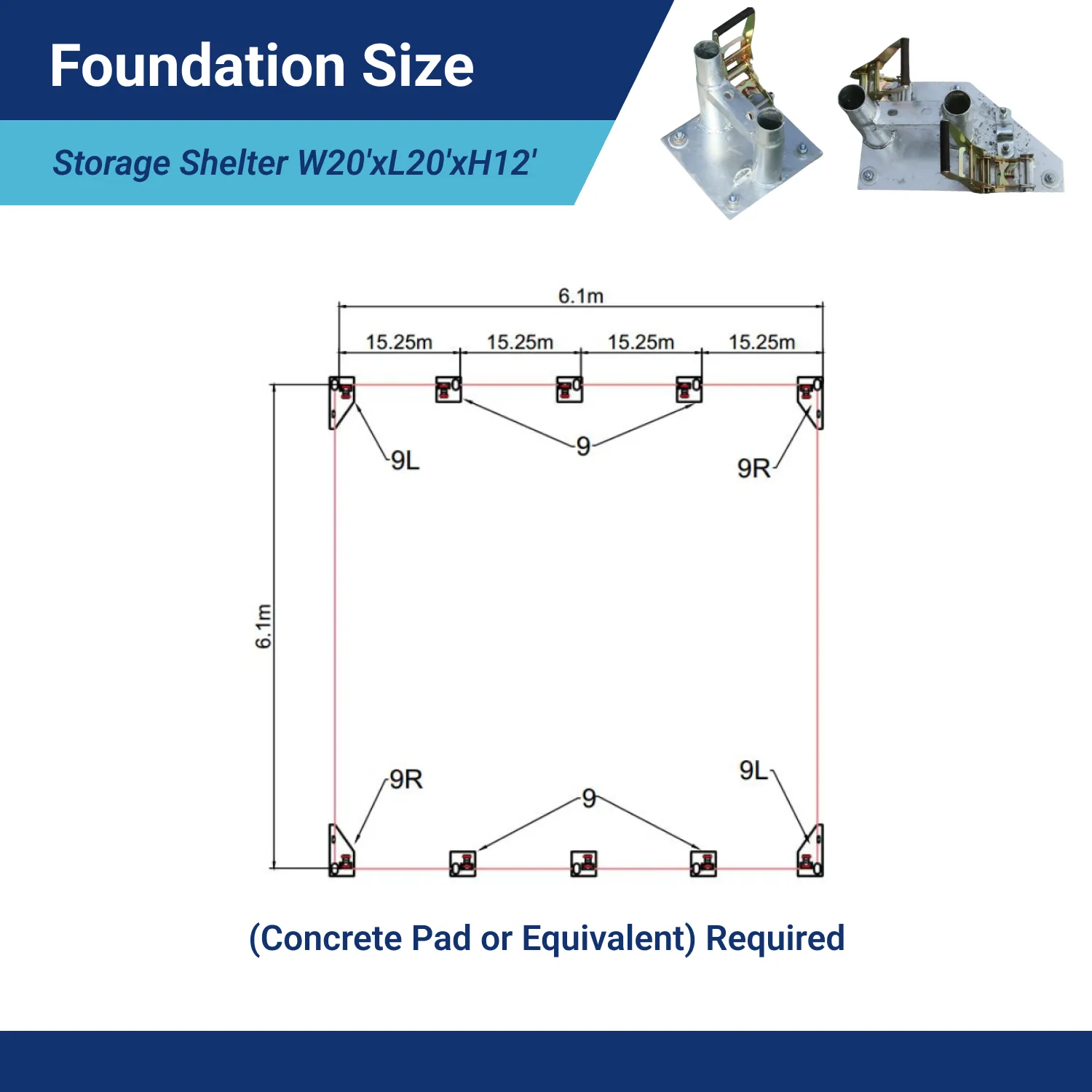

| Number of Anchor plates | 10 |

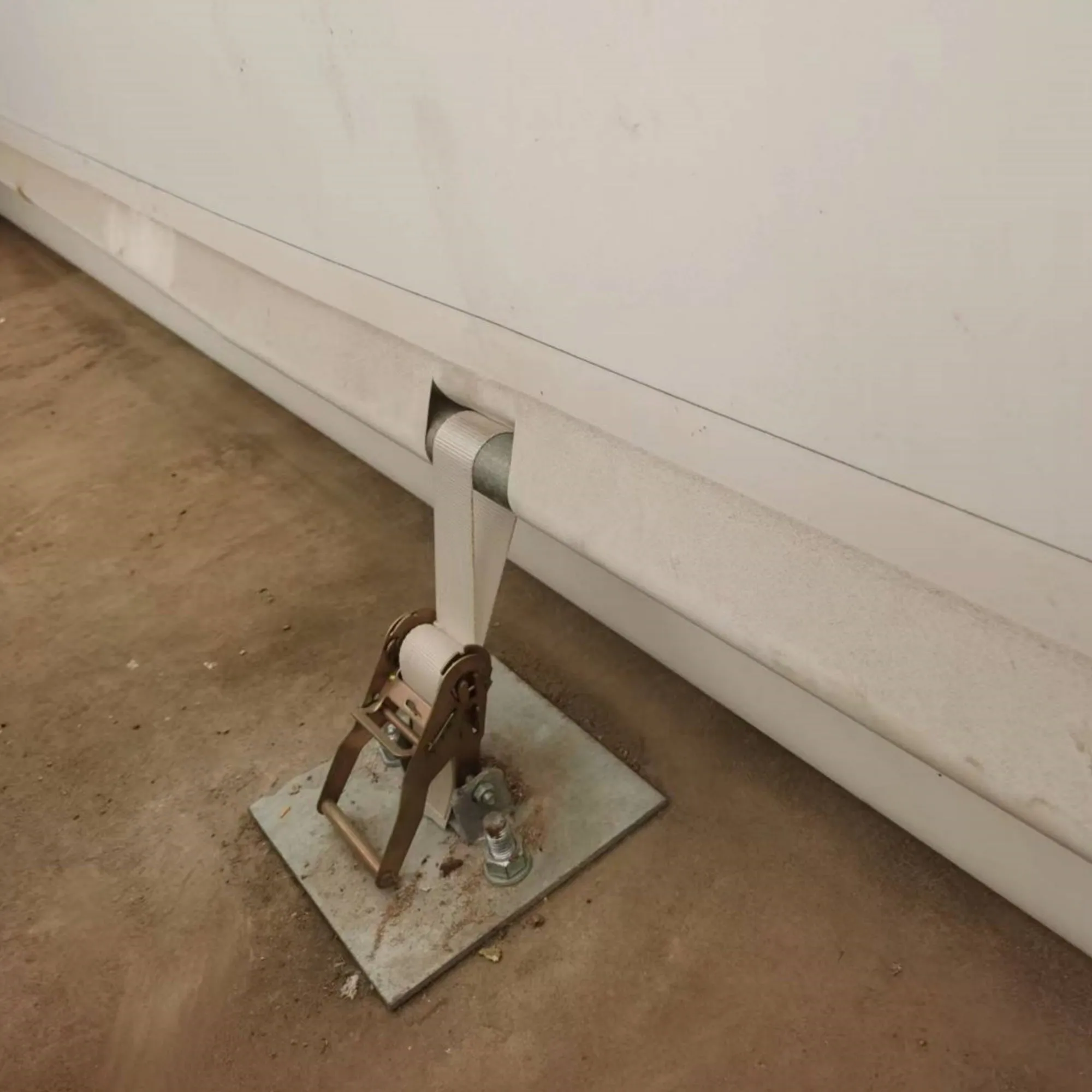

| Tension System | Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons | 1 Day |

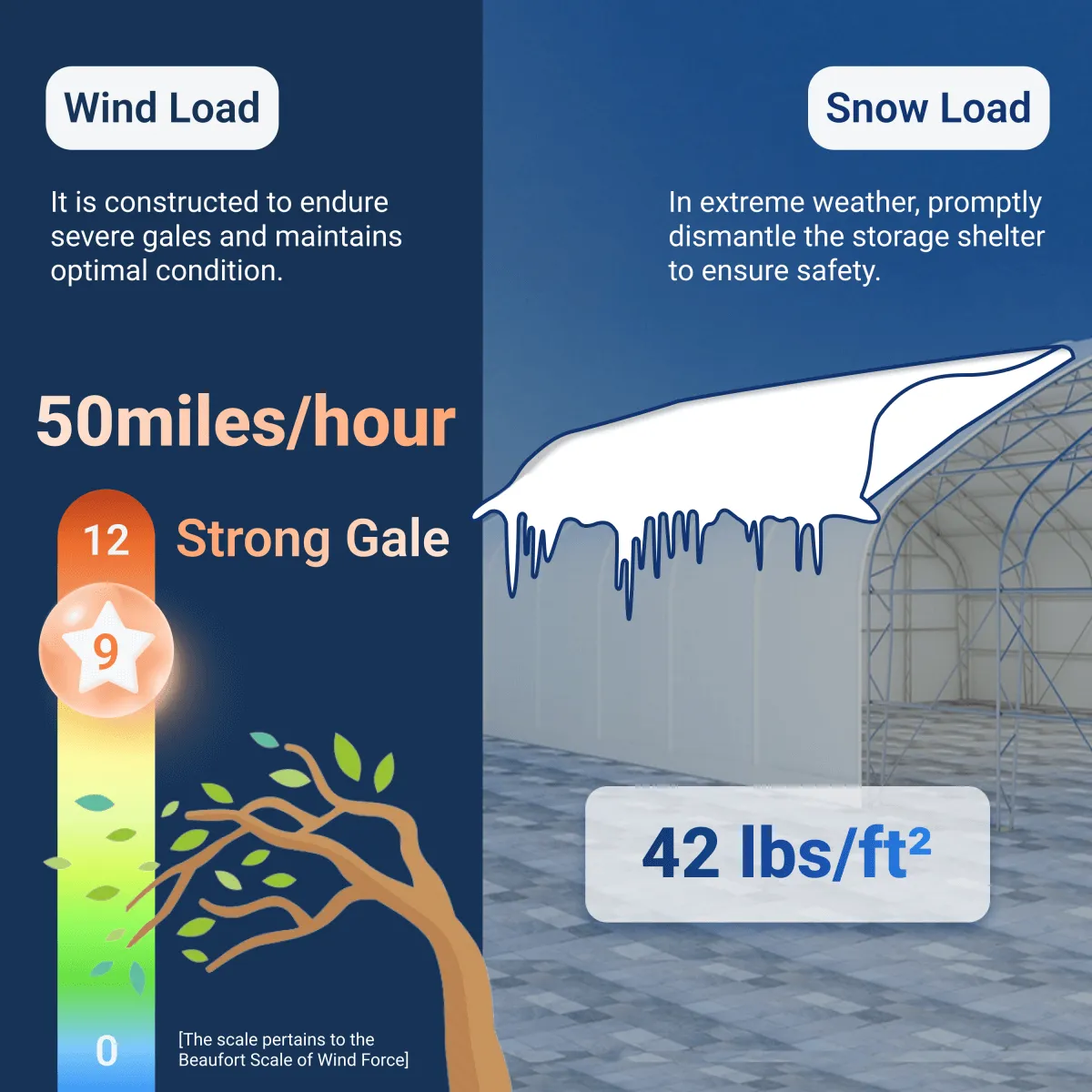

| Snow Load | 42 lbs/ft² |
| Wind Load | 50 miles/h |
| Tarp lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan |
15 Years |
|
Warranty |
- PE: 2 Years Warranty. - PVC: 8 Years Warranty. |
|
Fabric (Optional) |
|
| Country of Origin | China |
Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.

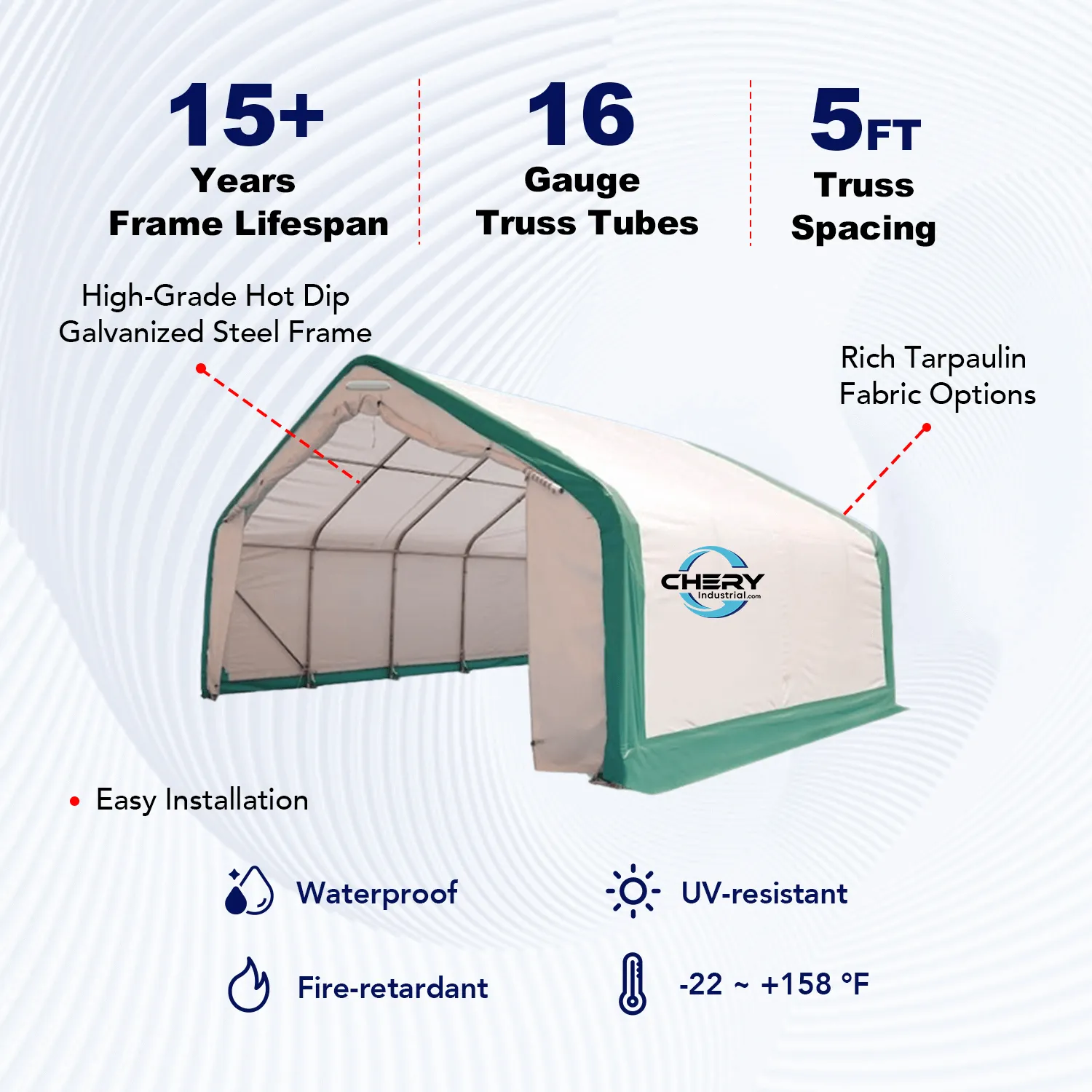

Features
- No building permits required*.
- Provides unlimited storage space with 20’ width, 20’ length, and 12’ height.
- Suitable for different purposes, from residential to commercial.
- The galvanized steel structure is built to last, which is resistant to rusting and corrosion.
- Weatherproof (snow, storm, wind, water), UV resistance, and fire retardant.
- No need to use electricity during the day with the PVC cover providing enough natural light.
- Easy entry and exit with double doors, which are placed at both ends.
Package Size
- LxWxH (inch): 87x40x24
- Weight (lb): 1672
- A forklift or equivalent is required for unloading.
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
