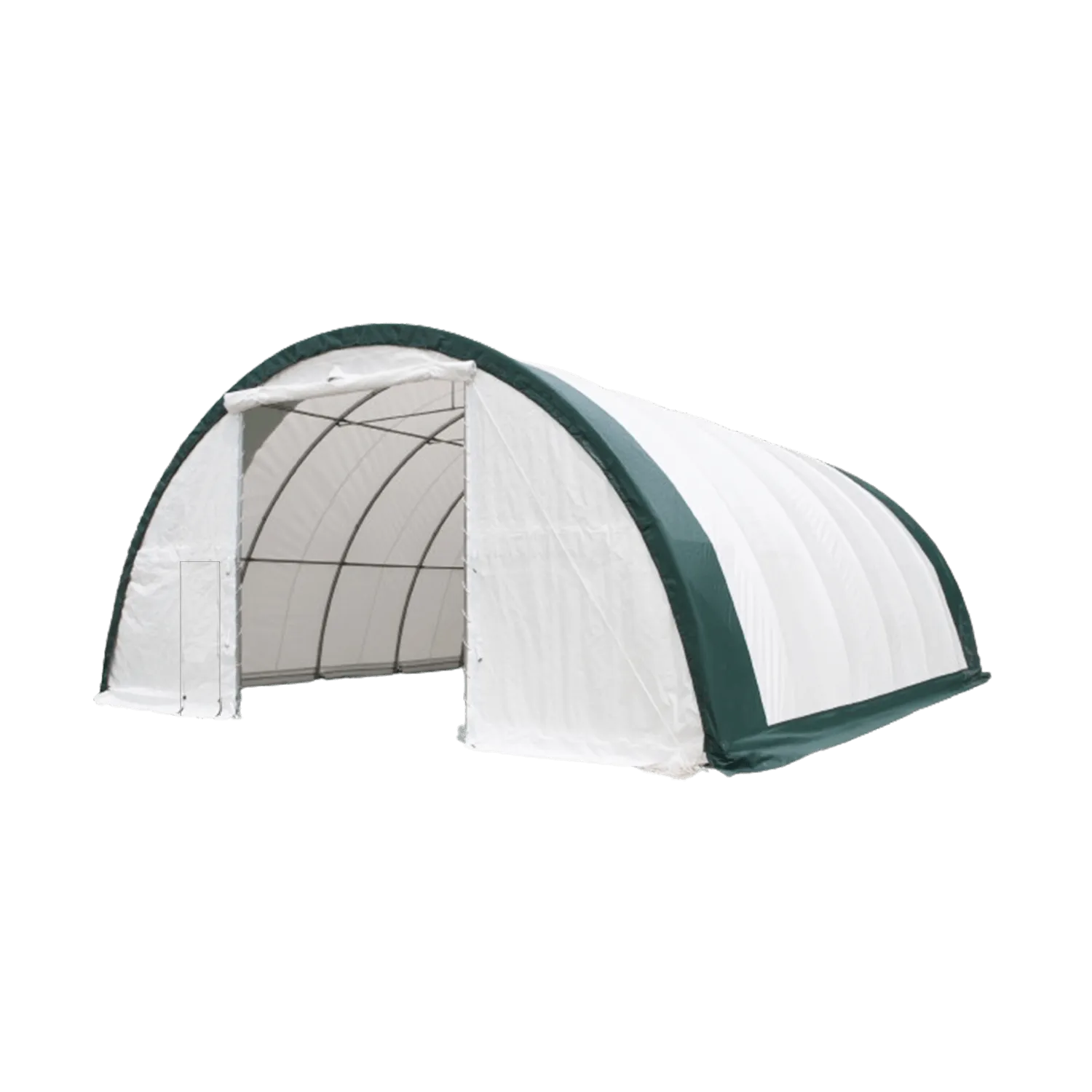

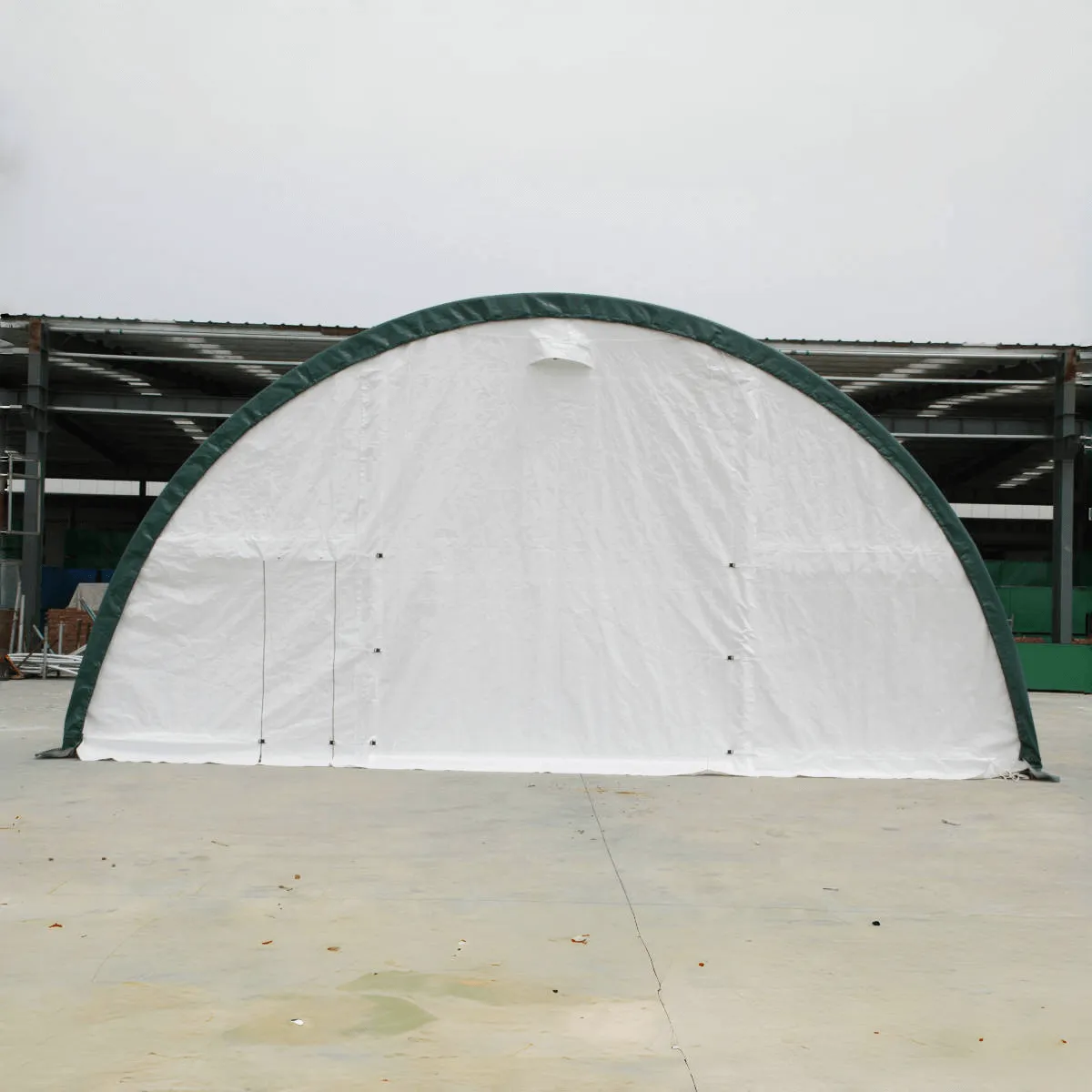

The Gold Mountain Single Truss Arch Storage Shelter W30’xL85’xH15’ is perfect for heavy rain and snow areas, offering a durable workspace solution. It features a rust-resistant galvanized steel frame, metal corner joints, and tear-proof reinforced PVC fabric with a 8-year warranty. Easy to build and suitable for all seasons, it is ideal for outdoor and farm storage. Dual doors at each end enhance accessibility, making it the first choice for storage and space needs.
It’s the owners' responsibility to take off snow immediately if not slide off by itself.

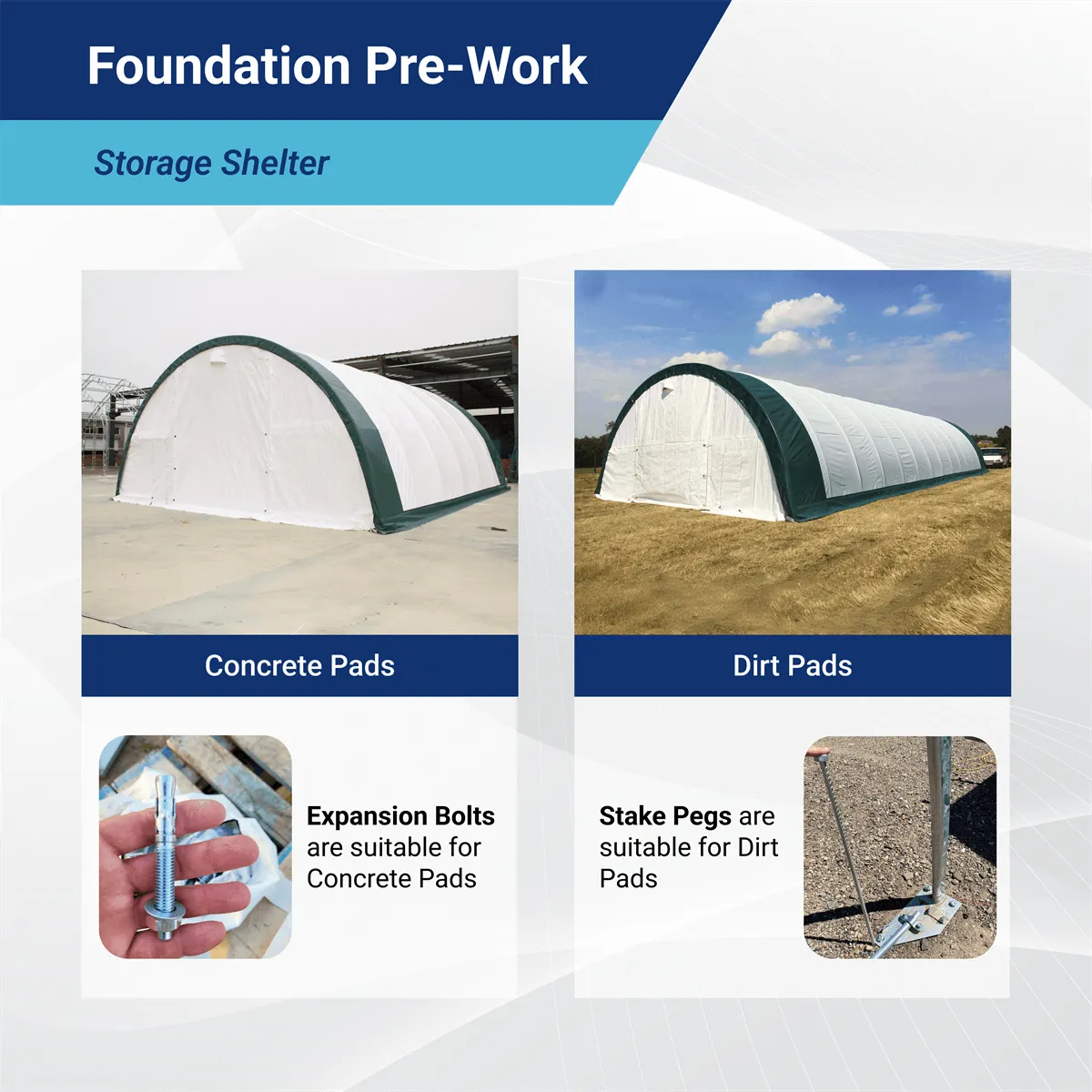

Please Note: Stake pegs are replaced by expansion bolts. If you need stake pegs, you can contact customer service to place an order.
Specification
| Description |
Specifications |

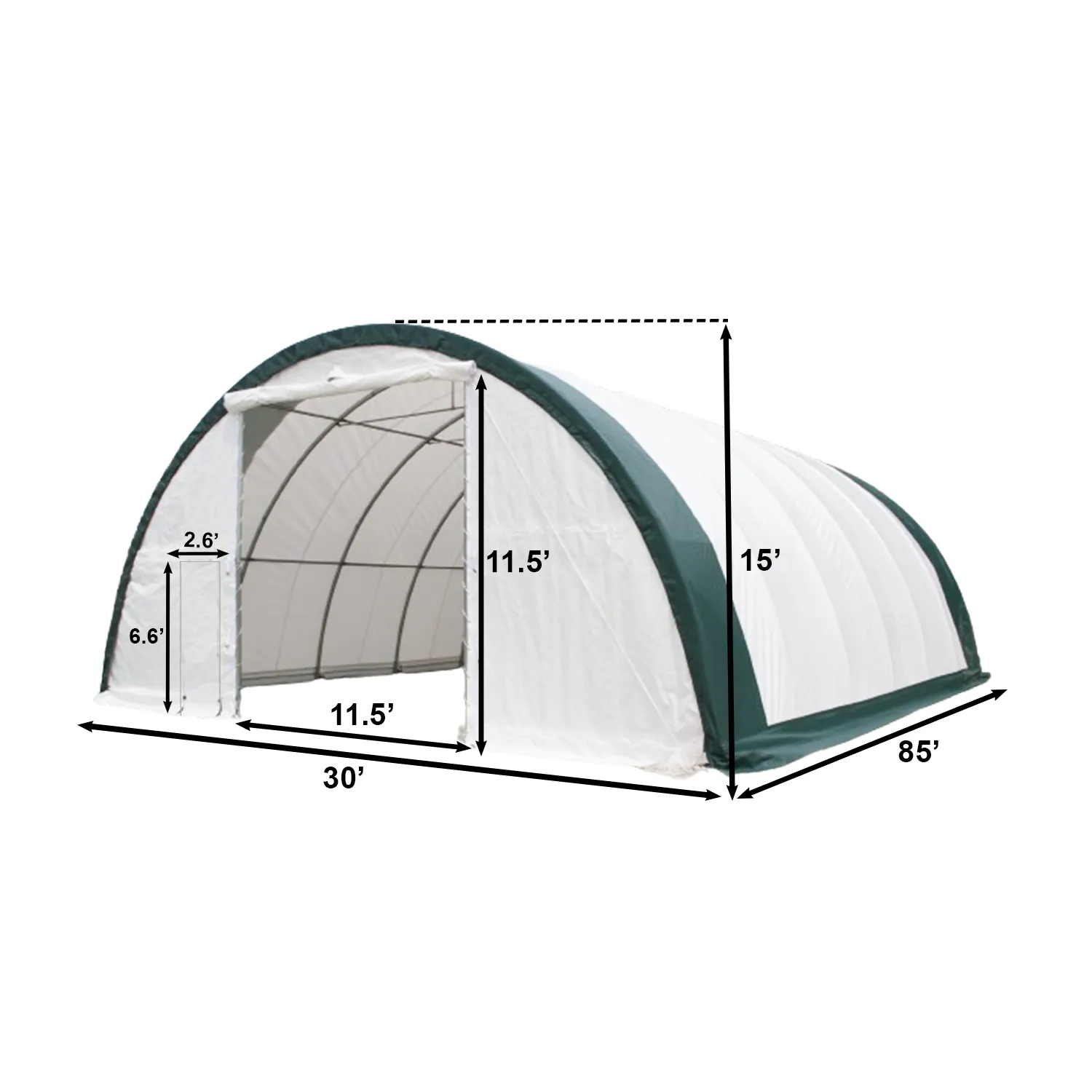

| Dimensions (WxLxH) | 30'x85'x15' |

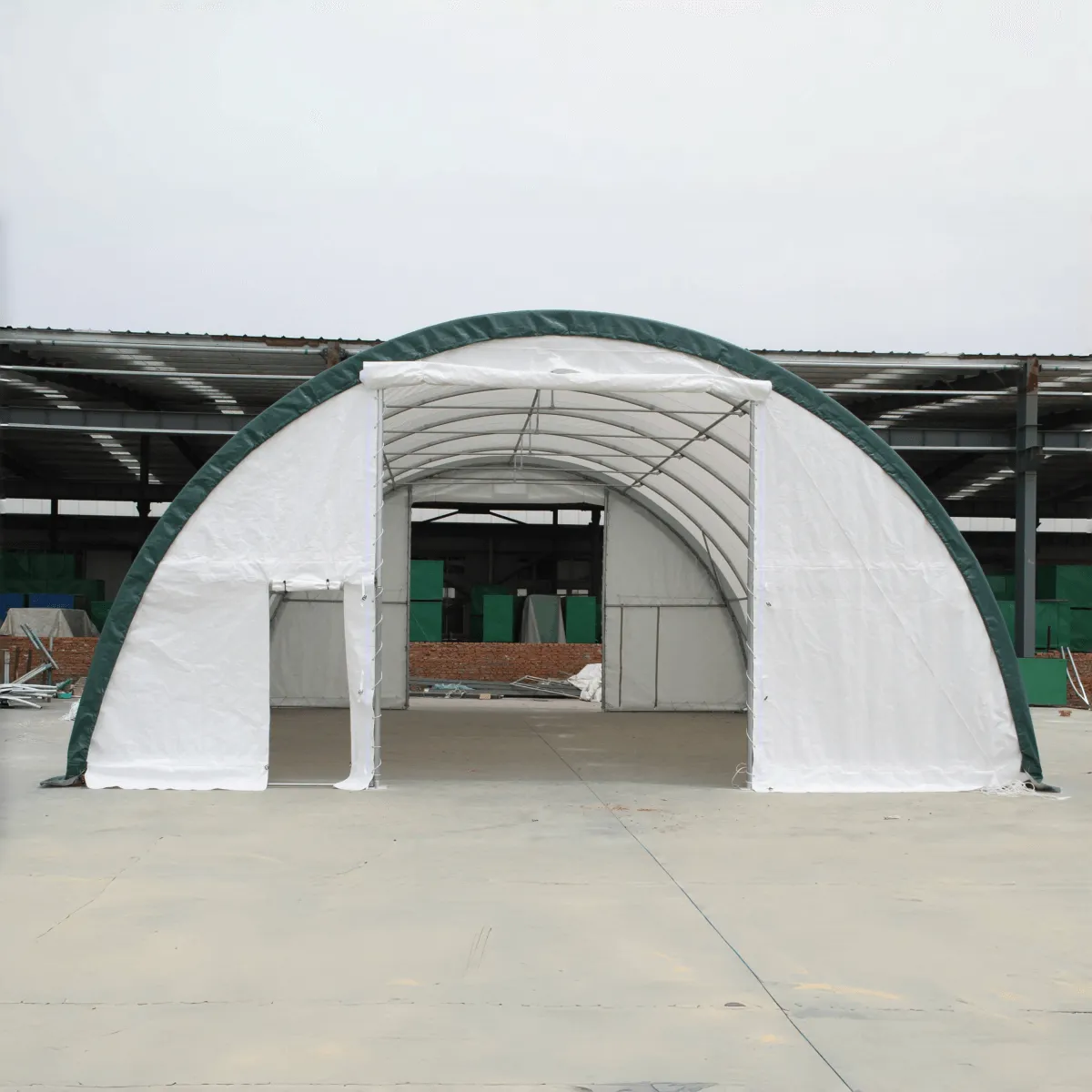

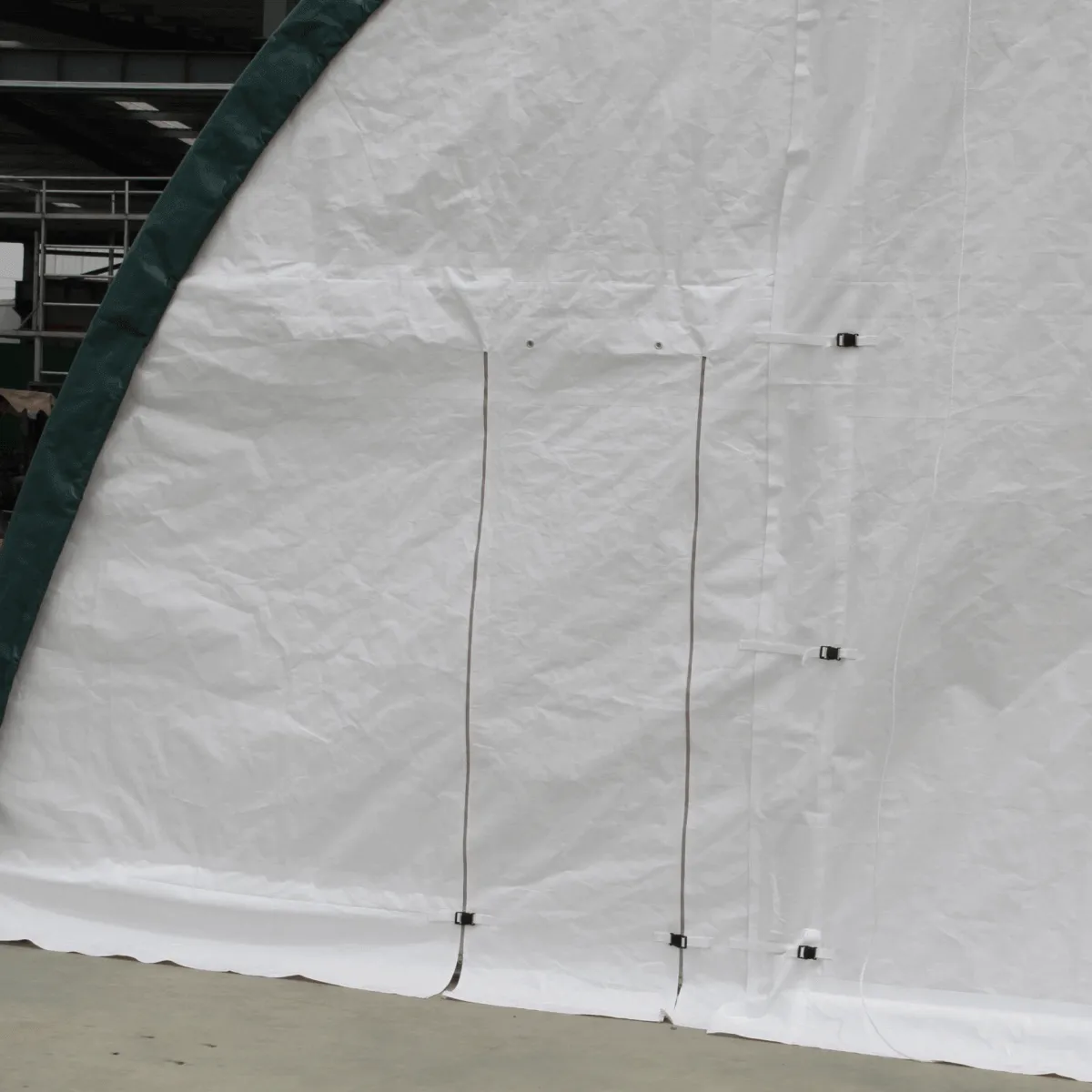

| Door size (WxH) (Front & Rear) | 11.5'x11.5' |
| Door Type | Rope Pullup Door |
| Man Door (WxH) | 2.6'x6.6' |
| Frame | Single Truss Galvanized Tube |
| Steel Frame | Hot Dip Galvanized Steel |
| Truss tube | 14 Gauge |
| Tarp Fabric | PE or PVC |
| Tarp Color (customizable) | White with Green/Red Edge |
| Temperature resistance | -22 - 158 °F |
| Arch Ø | Ф 70x42x2mm |
| Purlin Ø | Φ 40x1.5mm |
| Arch Spacing | 6.56 ft |
| Number of Arch | 14 |

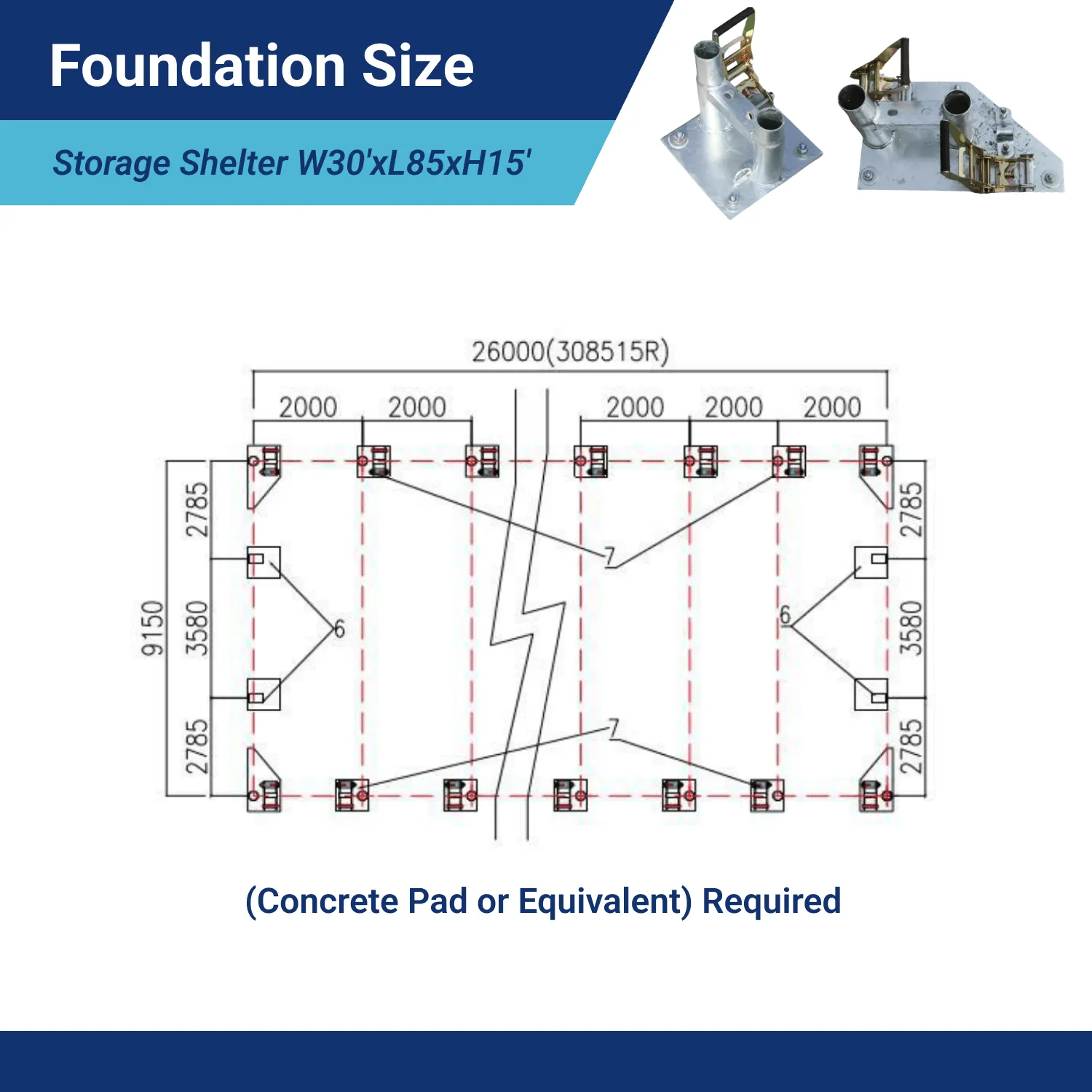

| Number of Anchor plates | 28 |

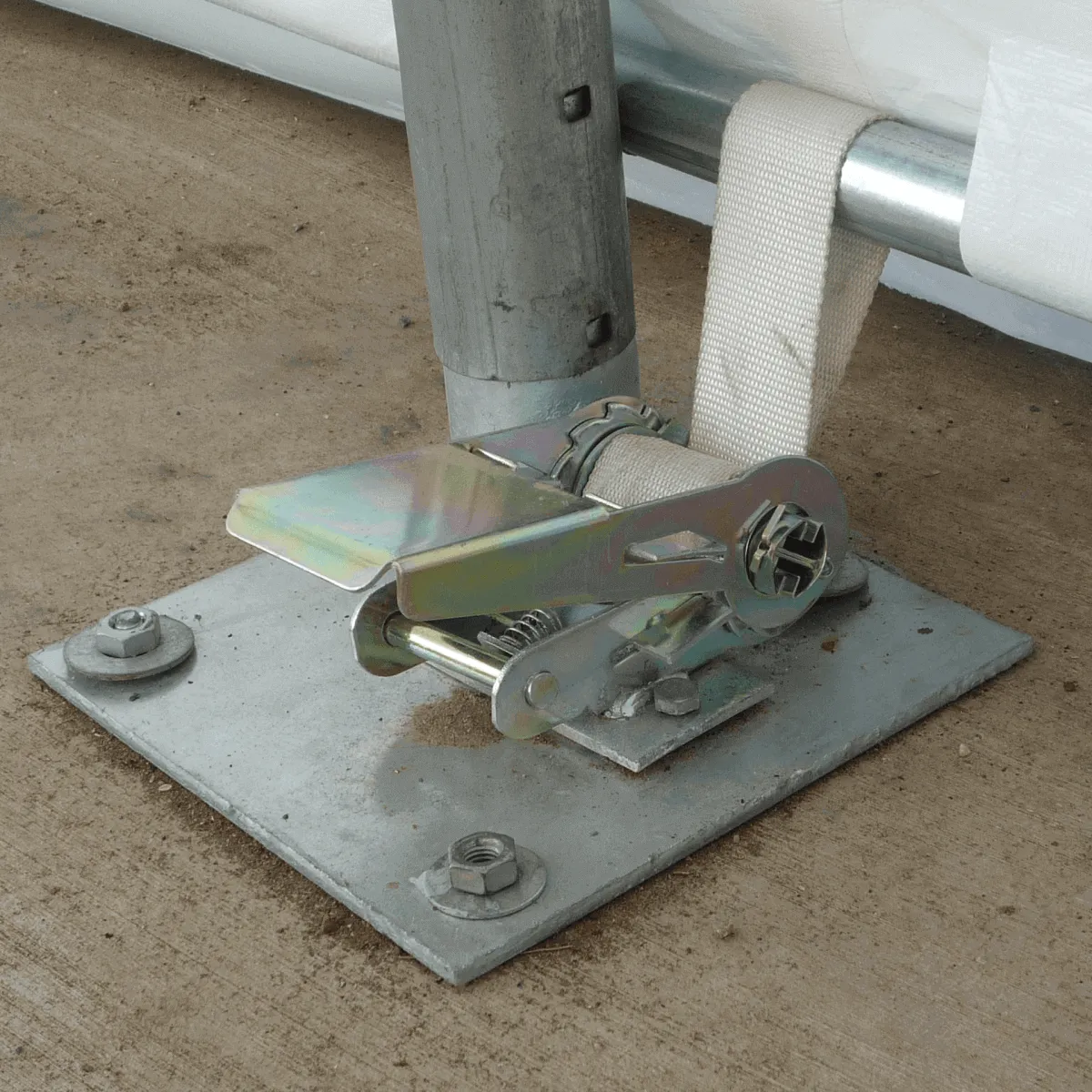

| Tension System | Pipe and Ratchet Tie-Down System |
| Average assembly time for DIY with 4 persons | 4 Days |
| Snow Load | 42 lbs/ft² |
| Wind Load | 50 miles/h |
| Tarp lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
|
Frame lifespan |
15 Years |
|
Warranty |
- PE: 2 Years Warranty. - PVC: 8 Years Warranty. |
|
Fabric (Optional) |
|
| Country of Origin | China |

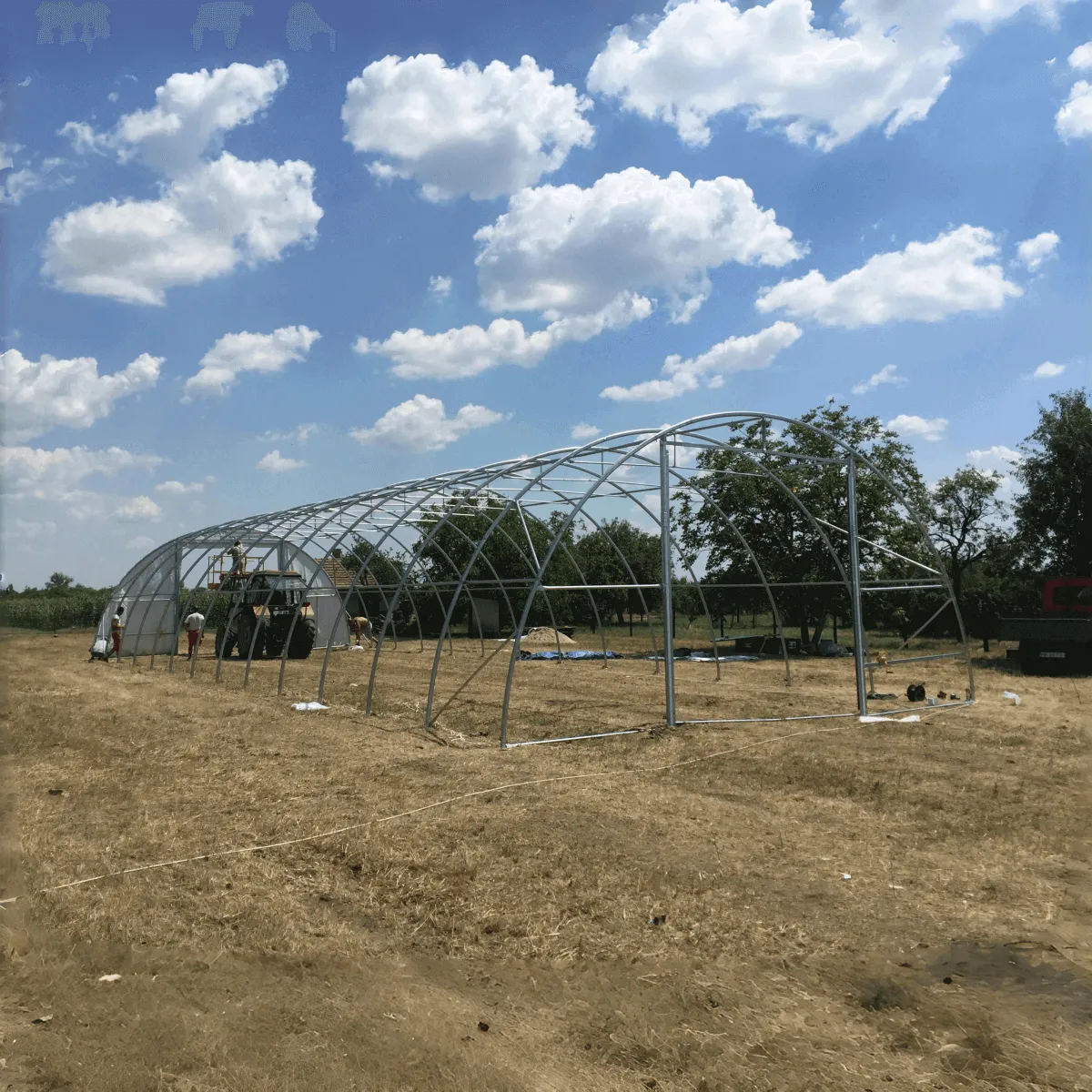

Installation Tips
1. That depends on the product and the local regulations. A permit is usually not necessary for temporary placement. For (semi) permanent placements, it’s best to contact your municipality.
2. It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we get the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
Feature
- No building permits required*.
- Resistant toward water, UV, and fading
- Style: Freestanding
- There is an average of 7-10 years of cover lifespan, depending on the environmental and weather conditions.
- A huge capacity for trucks, automobiles, and more bulk storage
- Protect belongings from wind, snow, and rain
- CSA/TUV Snow Rating Test Report
- SGS fabric Certificate
- Certificate: SGS
Package Size
- LxWxH (inch): 115x30x46
- Weight (lb): 3080
- A forklift or equivalent is required for unloading.
Parts
- Ratchet
Delivery and Unloading
- The product will be either loaded onto a box or flatbed truck, depending on its size.
- A forklift or equivalent is required for unloading.
