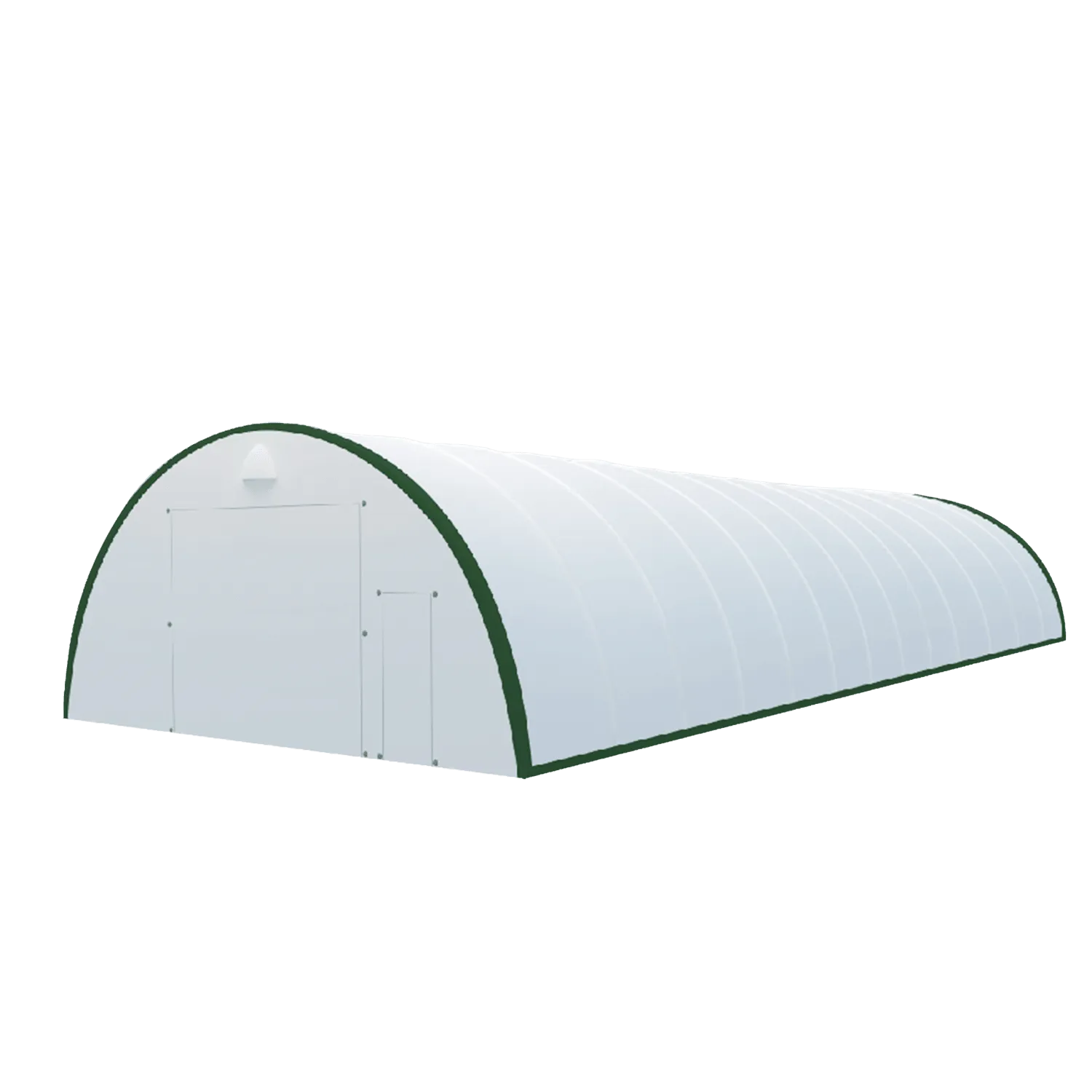

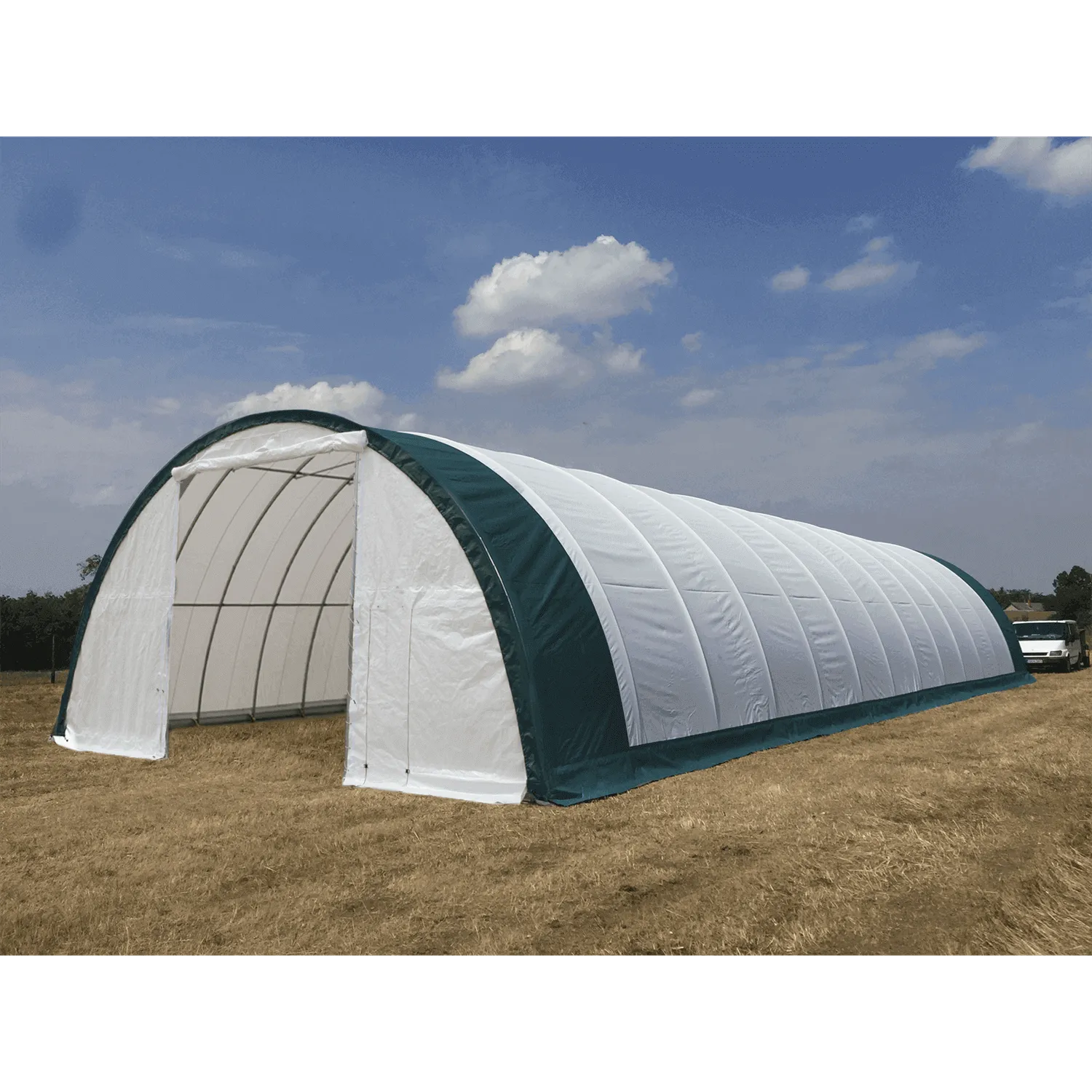

Gold Mountain Single Truss Arch Storage Shelter W30’xL85’xH15’
This Gold Mountain Single Truss Arch Storage Shelter W30’xL85’xH15’ is an excellent workspace solution for areas with heavy rain, snow, and rain. When it comes to storage and space matters, your requirement is the most important. The canopy fabric cover has a 2-year warranty, so shop it with confidence. The rust-resistant galvanized steel framework and metal corner joint make the tent more durable and stable. The tear-proof reinforced PE (Polyethylene) material is long-lasting and protection guaranteed. This fabric storage tent is easy to build and can be used for all seasons. This is the first choice for outdoor and farm storage. Two doors at each end make entry easier.
It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we got the sun and warm weather afterward it will make the fabric “slack” again and need to be re-tightened before next winter.
It’s the owners' responsibility to take off snow immediately if not slide off by itself.
This product is 300g/11 oz PE material, white color green edge design.
Feature
-
Resistant toward water, UV, and fading
-
Style: Freestanding
-
There is an average of 7-10 years of cover lifespan, depending on the environmental and weather conditions.
-
A huge capacity for trucks, automobiles, and more bulk storage
-
Protect belongings from wind, snow, and rain
-
CSA/TUV Snow Rating Test Report
-
SGS fabric Certificate
-
Type: Prefabricated Building
-
Certificate: SGS
-
Condition: New
Package Size
-
LxWxH (inch): 115x30x46
-
Weight (lb): 3080
-
A forklift or equivalent is required for unloading
Specifications
| Model | S308515R | ||||
|---|---|---|---|---|---|

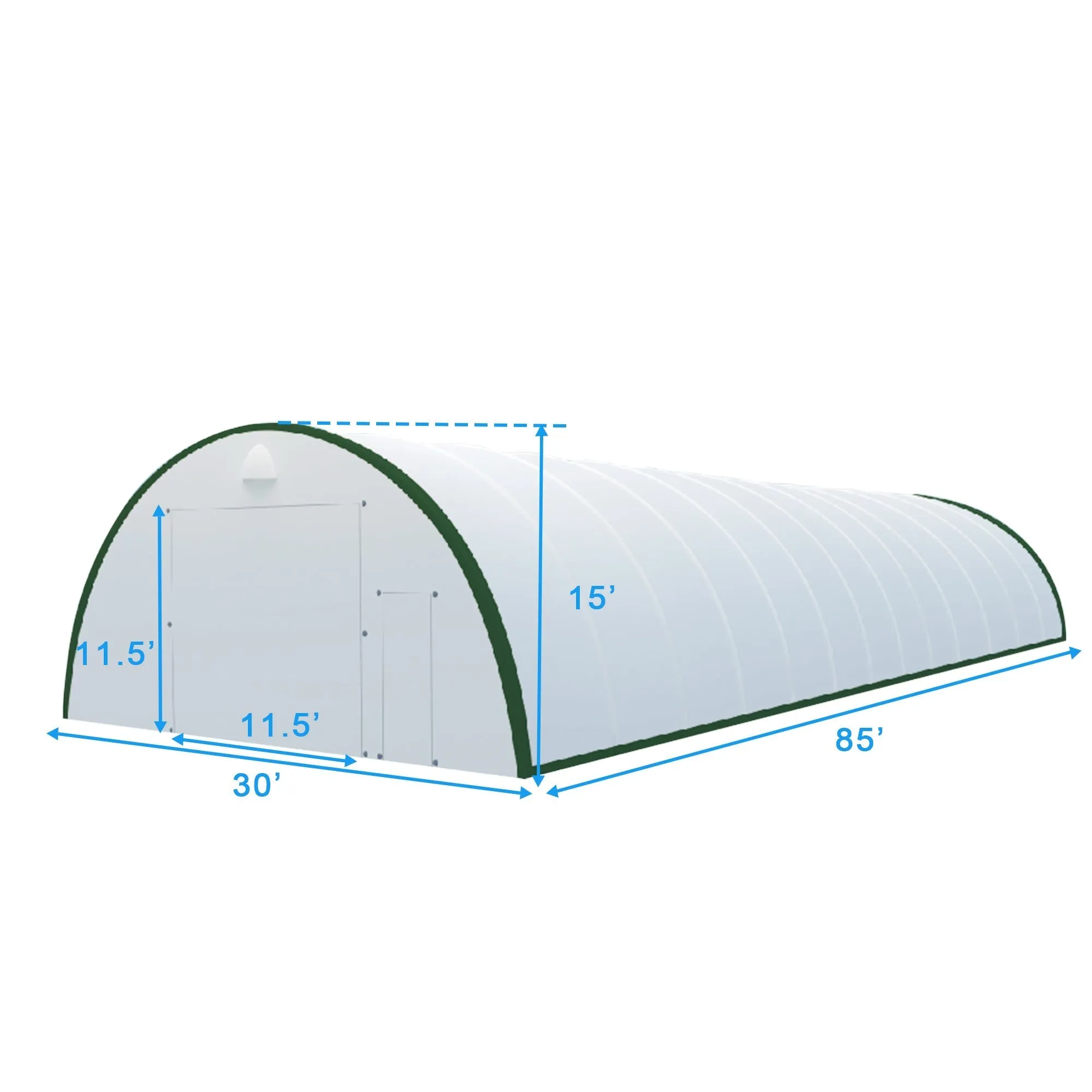

| Dimensions(WxLxH) | 30ft x 85ft x 15ft | ||||
| Door dimension(WxH) | 11.5'x11.5' | ||||
| Total trusses | 14 Units | ||||
| Truss spacing | 6.6' | ||||
| Total large anchor plates | 28 units | ||||
| Truss tube | Gauge 15 | ||||
| Snow Rating | 1.77 kpa / 37 pounds per sq. foot | ||||
| Wind Load | 50 miles per hour | ||||
| Frame | Galvanized steel tubes | ||||
| Fabric cover | 300g (11oz) PE (Cover price: $3,310) 450g (16oz) PVC (Cover price: $5,000) 500g (18oz) PVC (Cover price: $5,500) 650g (23oz) PVC (Cover price: $6,400) 750g (26oz) PVC (Cover price: $7,200) 900g (32oz) PVC (Cover price: $8,400) Please contact us to order |
||||
| Color | White, blue, green, army green, grey, or customized color | ||||
| 308515R |
Test Load | Deflection | |||
| Lb | Kpa | Point A (inch) | Point B (inch) | Point C (inch) | |
| Step 1 | 0 | 0 | 0 | 0 | 0 |
| Step 2 | 1005 | 1.52 | 1.4 | 1.6 | 1.2 |
| Step 3 | 1507 | 2.28 | 2.2 | 2.3 | 1.6 |
| Step 4 | Keep the test load until 30 minutes | ||||
| Step 5 | Remove the test load | 0.6 | 1.1 | 1.2 | |
| Step 6 | The test sample can withstand the applied test load without damage. | ||||
Product Manual
Delivery
Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our
