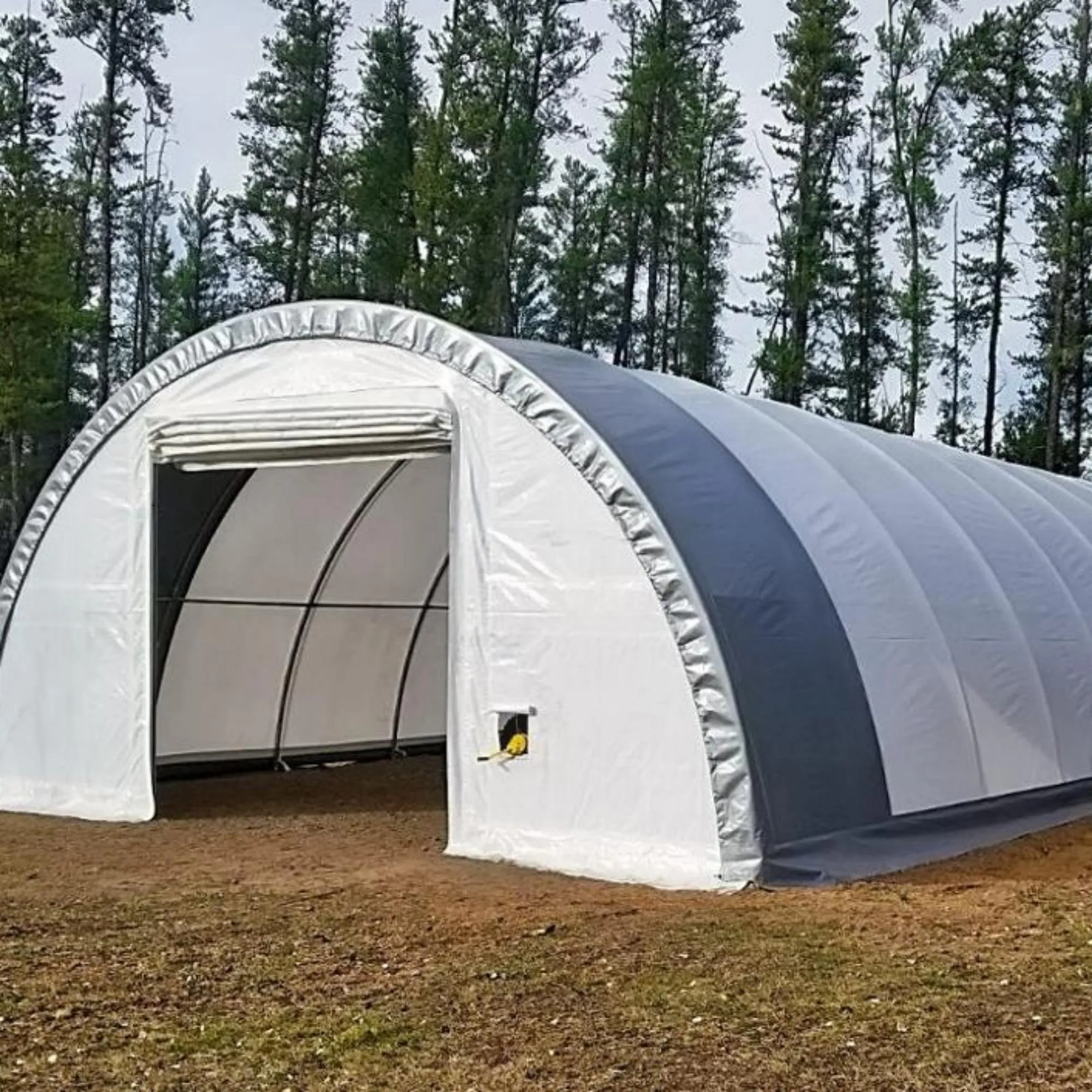

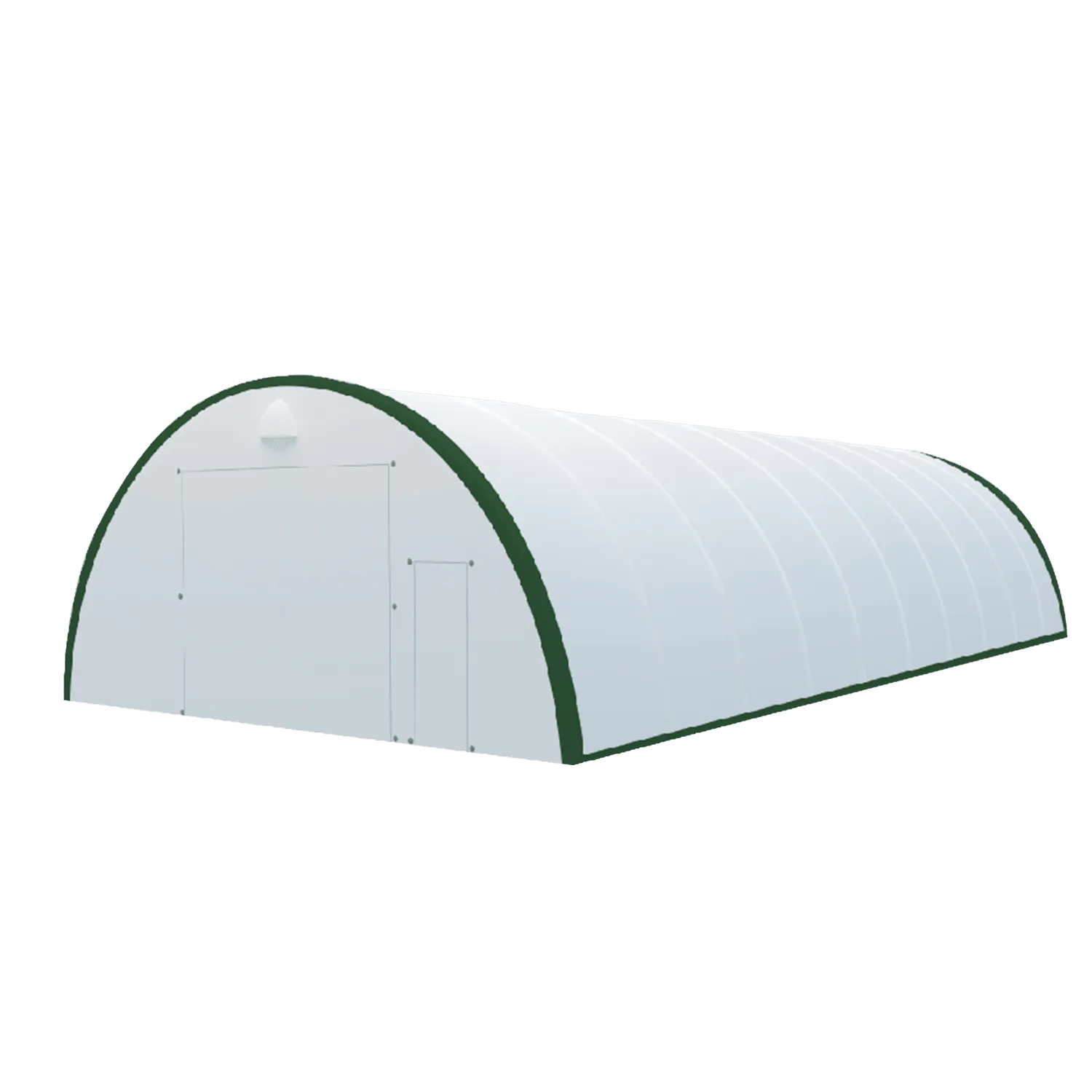

Gold Mountain Single Truss Arch Storage Shelter W30’xL65’xH15’
This Gold Mountain Single Truss Arch Storage Shelter W30’xL65’xH15’ has openings for both ends. This outdoor canopy storage shelter is waterproof and UV resistant and can protect your belongings very well if you live near the ocean with humid air. This storage tent is easy to assemble and fast to build. The PE (Polyethylene) material is tough and durable, and will not be torn by weather. The storage shelter has multi functional outdoor usage: agricultural/industrial/commercial warehouses, storage for trucks/vehicles/boats, and outdoor events/weddings/activities.
Offering a remarkable 100% usable space, this storage shelter maximises your storage capabilities. Crafted with a single truss arch design, it provides a generous interior of W30'xL65'xH15'. Ideal for protecting equipment, vehicles, and materials from the elements. Designed for durability, this shelter ensures both convenience and reliability. Whether for commercial or personal use, the Single Truss Arch Storage Shelter W30'xL65'xH15' is your ultimate solution. Elevate your storage potential with this exceptional storage shelter, now available for sale. Experience efficiency and security like never before.

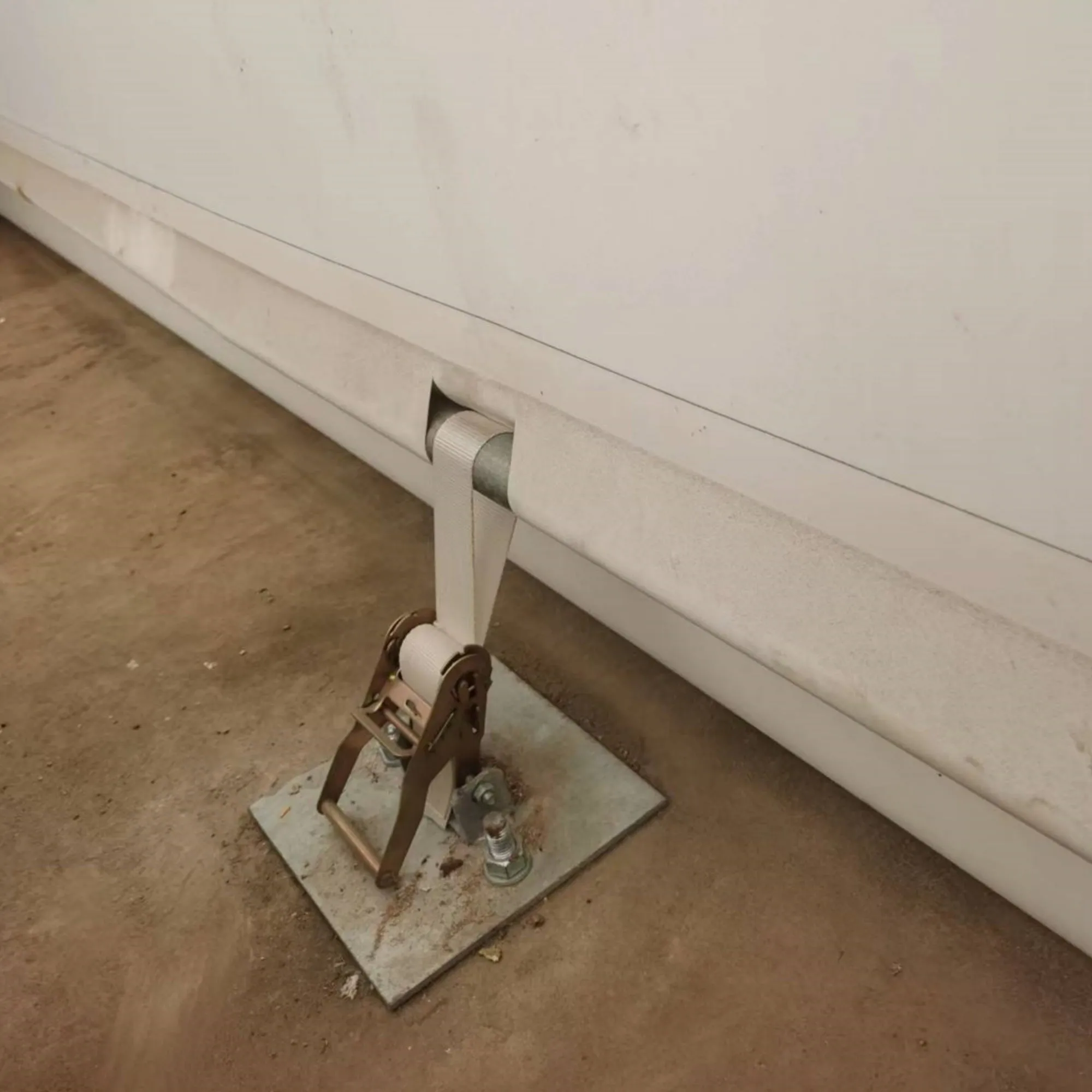

It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we got the sun and warm weather afterwards it will make the fabric “slack” again and need to be re-tightened before next winter.It’s the owners' responsibility to take off snow immediately if not slide off by itself.This product is 300g/11 oz PE material, white colour green edge design.
Features
-
Resistant toward water, UV and fading
-
Style: Freestanding
-
A huge capacity for trucks, automobiles, and more bulk storage
-
Protect belongings from wind, snow, and rain
-
CSA/TUV Snow Rating Test Report
-
SGS fabric Certificate
-
Type: Prefabricated Building
-
Certificate: SGS
-
There is an average of 7-10 years of cover lifespan, depending on the environmental and weather conditions.
Package Size
-
LxWxH (inch): 115x30x39
-
Weight (lb): 2447 (11oz); 2580 (16oz)
-
A forklift or equivalent is required for unloading
Specifications

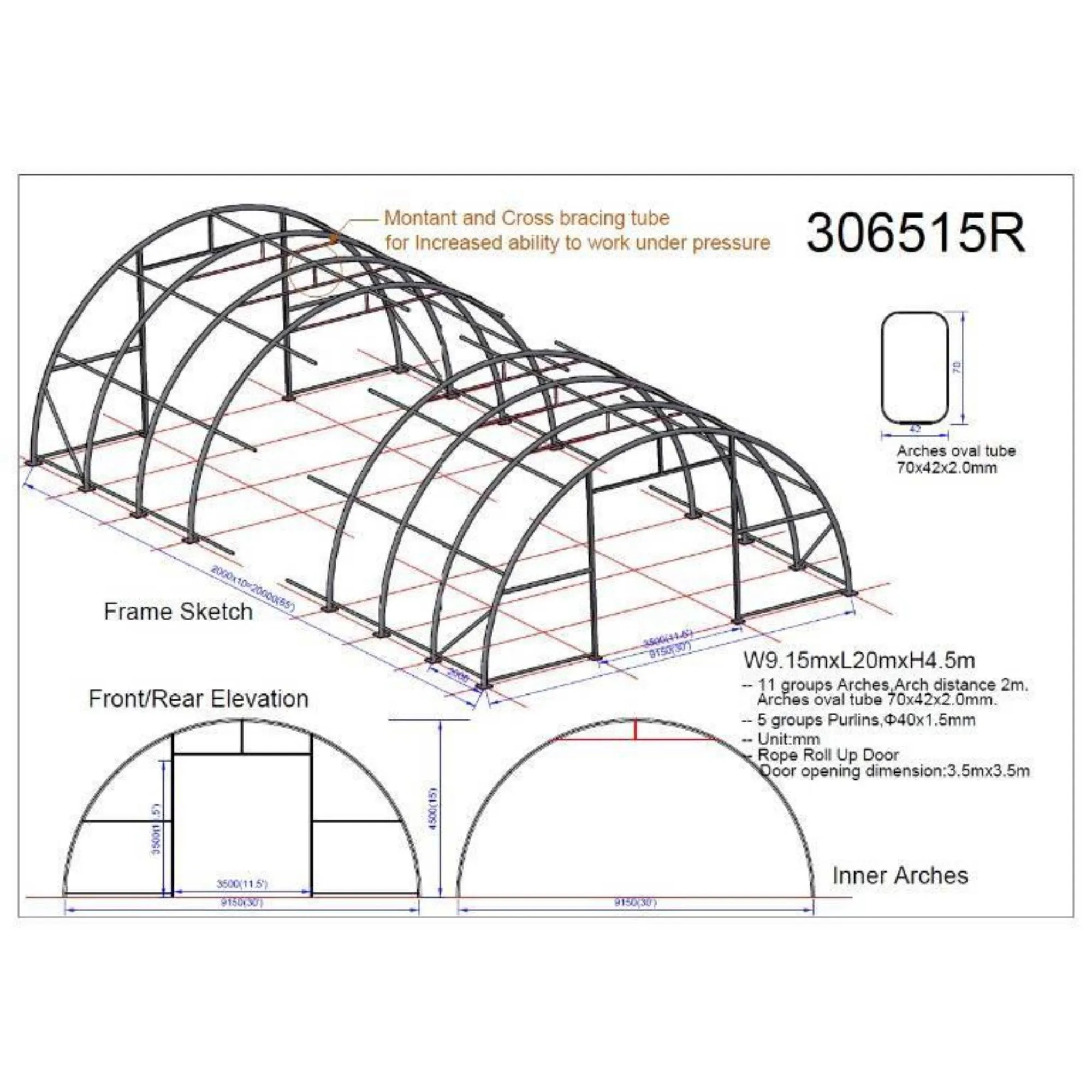

Model | S306515R | ||||
---|---|---|---|---|---|

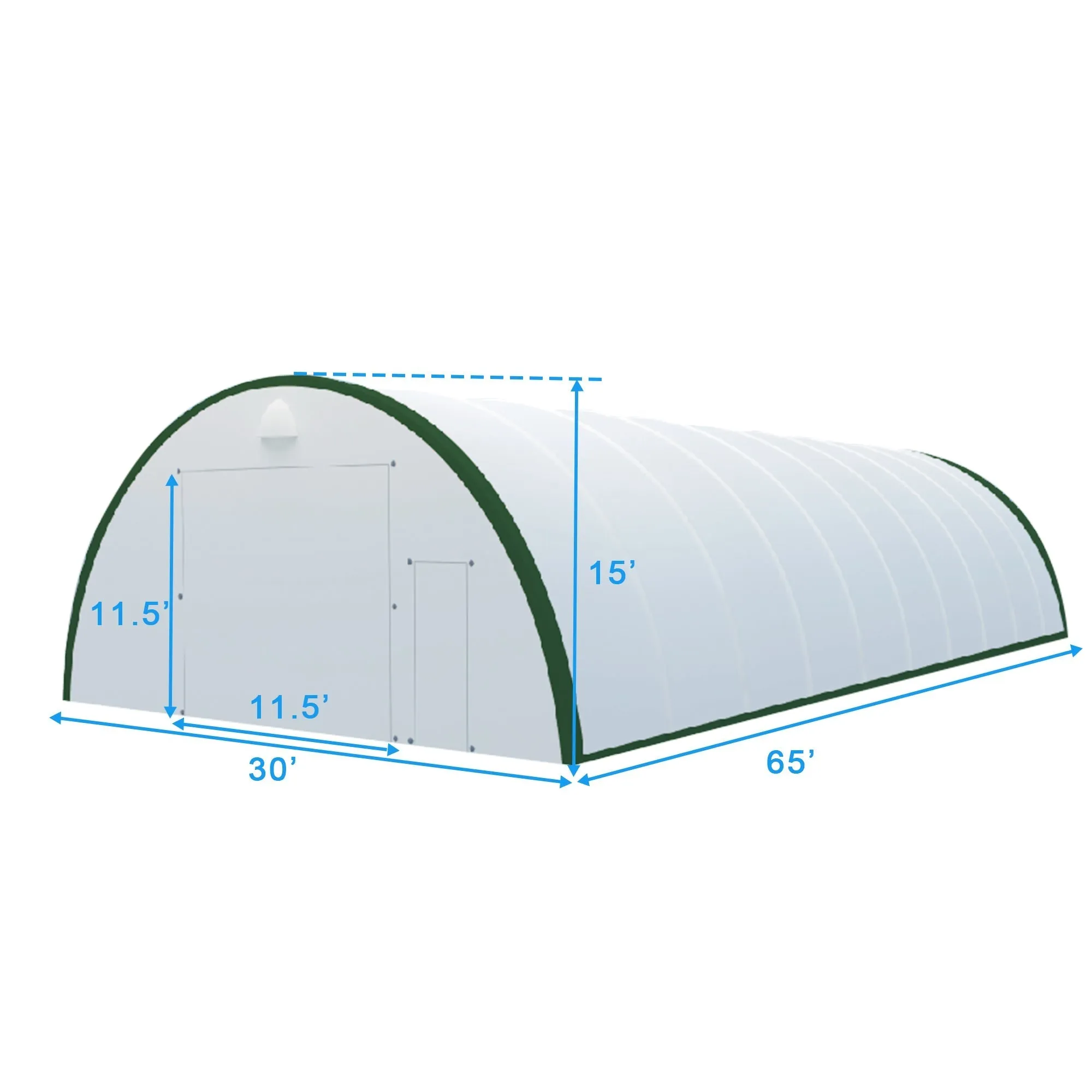

Dimensions | 30ft x 65ft x 15ft | ||||

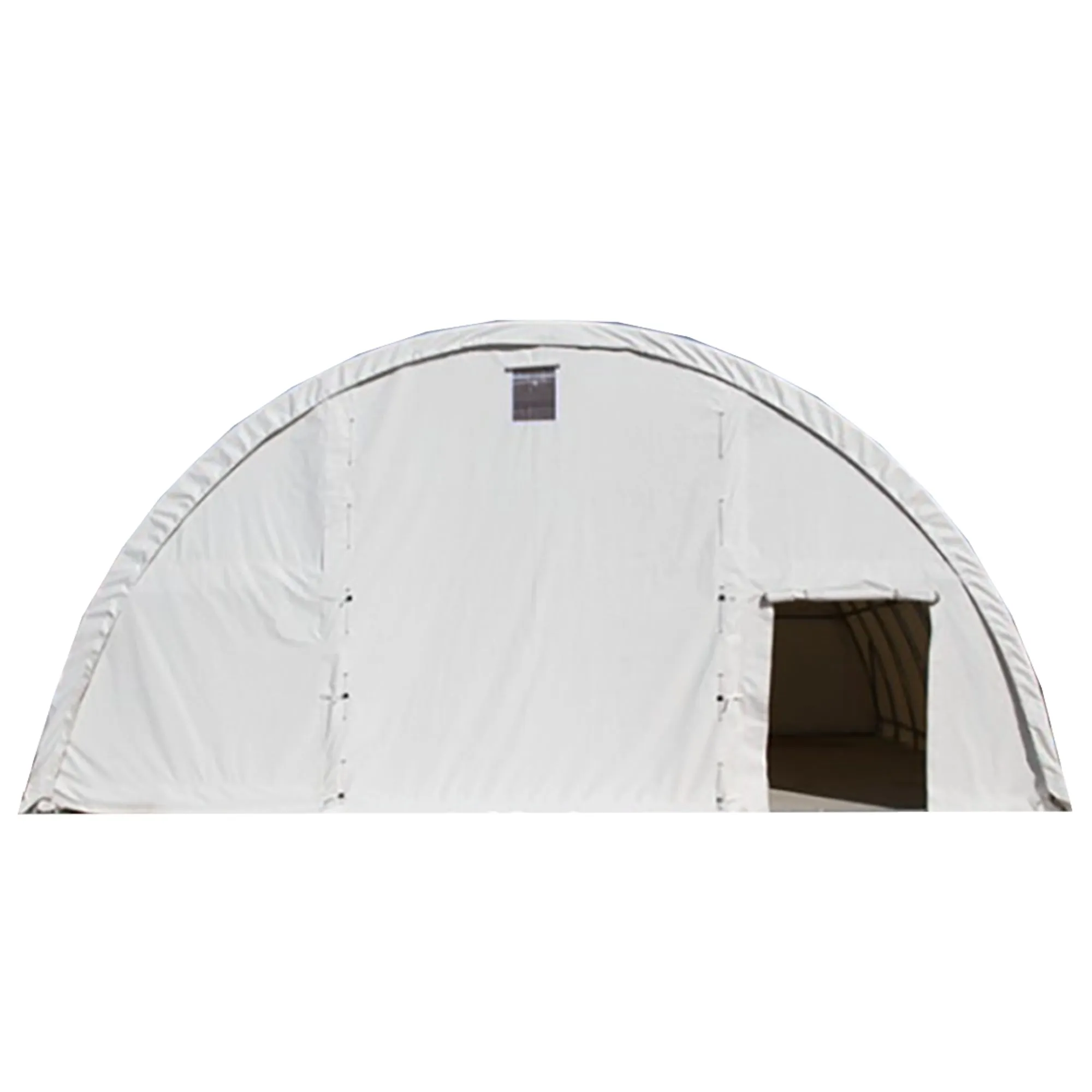

Door dimension | 11.5 ft x 11.5 ft, side door: 6.3ft x 2.7ft | ||||
Arch Interval | 6.6 ft | ||||
Arch Φ (mm) | 70 x 42 x 2.0, 11 groups | ||||
Purlin Φ (mm) | 40 x 1.5, 5 groups | ||||
Snow Rating | 1.77 kpa / 37 pounds per sq. foot | ||||
Wind Load | 50 miles per hour | ||||

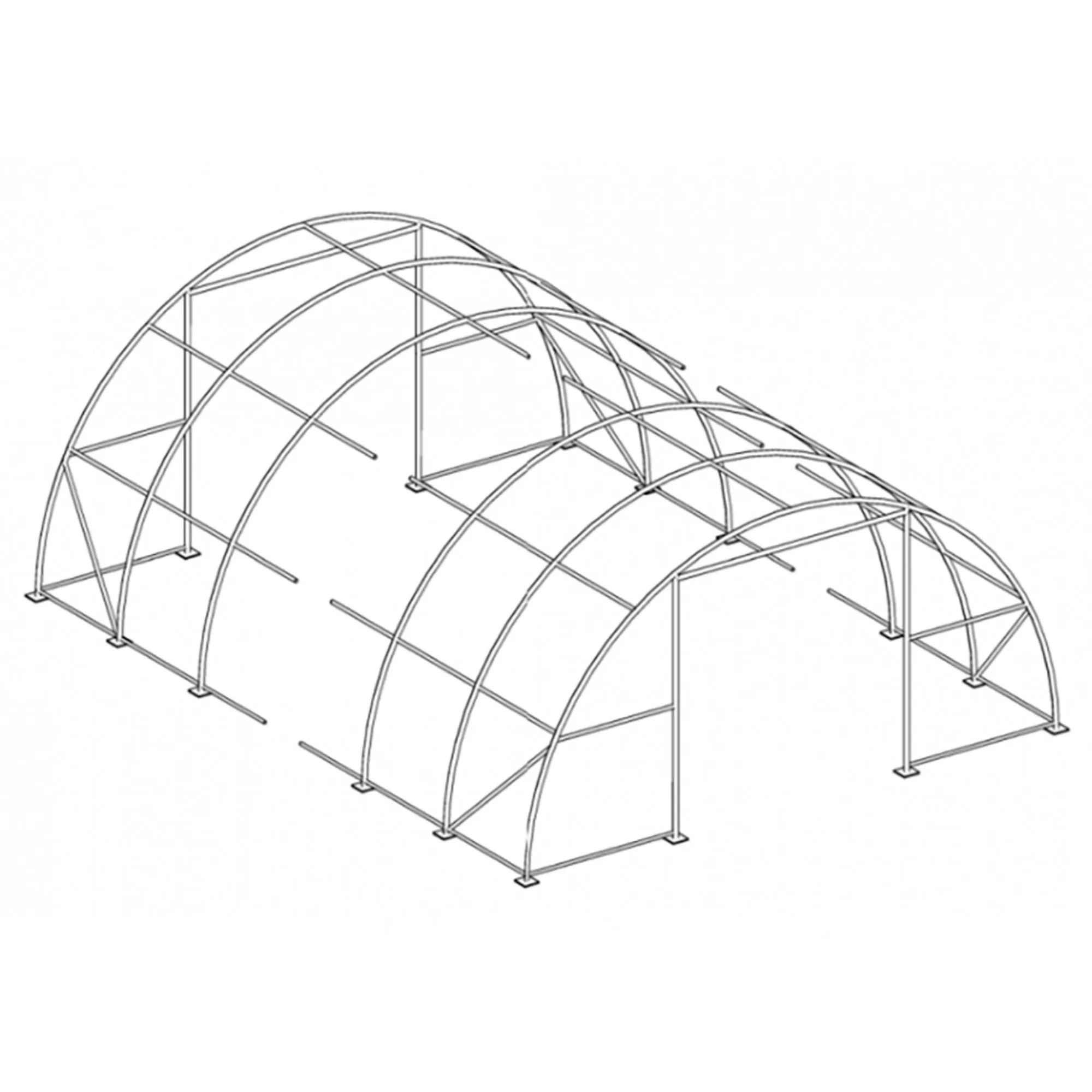

Frame | Galvanized steel tubes | ||||
Fabric cover |
300g (11oz) PE (Cover price: $2,570) 450g (16oz) PVC (Cover price: $4,400) 650g (23oz) PVC (Cover price: $5,600) 750g (26oz) PVC (Cover price: $6,300) 900g (32oz) PVC (Cover price: $7,400) Please contact us if you want to order |
||||
Color | White color and green edge | ||||
306515R |
Test Load | Deflection | |||
Lb | Kpa | Point A (inch) | Point B (inch) | Point C (inch) | |
Step 1 | 0 | 0 | 0 | 0 | 0 |
Step 2 | 1005 | 1.52 | 1.4 | 1.6 | 1.2 |
Step 3 | 1507 | 2.28 | 2.2 | 2.3 | 1.6 |
Step 4 | Keep the test load until 30 minutes | ||||
Step 5 | Remove the test load | 0.6 | 1.1 | 1.2 | |
Step 6 | The test sample can withstand the applied test load without damage. |
