Gold Mountain Single Truss Arch Storage Shelter
Introducing the Gold Mountain Single Truss Arch Storage Shelter - your durable solution for secure storage! With a spacious W20'xL42'xH12' design and robust 11oz PE material, this shelter offers reliable protection for your valuable assets. Invest in peace of mind and safeguard your belongings with this top-quality storage solution.
It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or twice again after a few months of use. This is important when assembly in cold weather (autumn and winter) because the fabric is stiff then and when we got the sun and warm weather afterwards it will make the fabric “slack” again and need to be re-tightened before next winter.
Features
-
12ft drive through the front door to end door
-
An average of 7-10 years of cover lifespan, depending on the environmental and weather conditions.
-
Style: Freestanding
-
Commercial-grade galvanised steel tubes
-
100% waterproof, fire retardant, UV inhibitor
-
Simple assembly, super easy to install
-
CSA/TUV Snow Rating Test Report
-
SGS fabric Certificate
-
Type: Prefabricated Building
-
Condition: New
Package Size
-
LxWxH(inch):
-
Weight(lb): 1161
-
A forklift or equivalent is required for unloading
Specifications

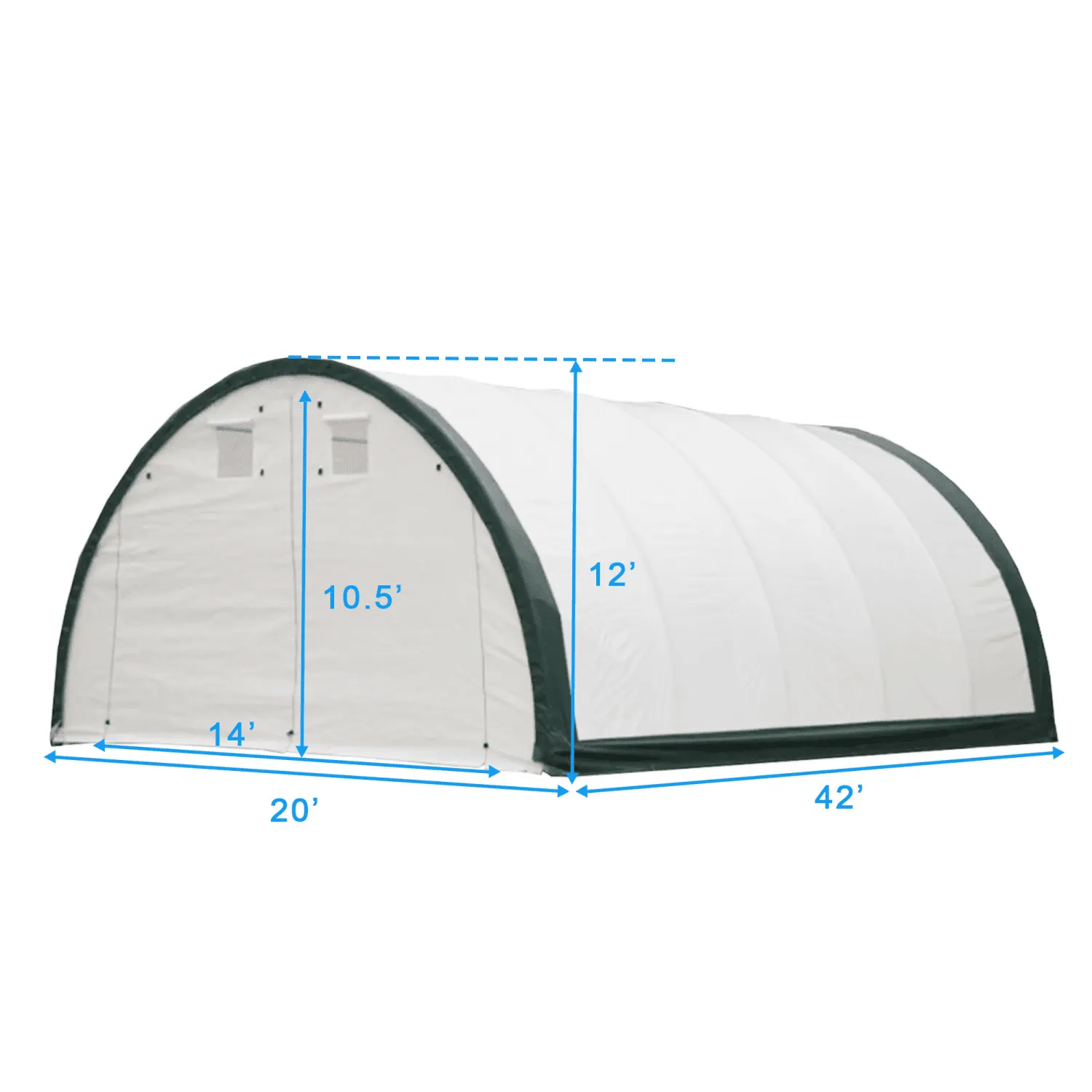

| Dimensions(WxLxH) | 20ft x 42ft x 12ft | ||||
|---|---|---|---|---|---|
| Door Size(WxH) | 14ftx10.5ft | ||||
| Arch Interval | 6ft | ||||
| Arch Φ (mm) | 70 x 42 x 1.50 | ||||
| Purlin Φ (mm) | 40 x 1.20 | ||||
| Anchor Size | φ14x450mm | ||||
| Snow Rating | 1.96 kpa / 41 pounds per sq. foot | ||||
| Wind Load | 50 miles per hour | ||||
| Material | Galvanized Steel Tube & 11oz High-Quality Fabric PE (Polyethylene) Material | ||||
| Fabric | 300g (11oz) PE (cover price: $860) 450g (16oz) PVC (cover price: $1,300) 650g (23oz) PVC (cover price: $1,700) 750g (26oz) PVC (cover price: $1,900) 900g (32oz) PVC (cover price: $2,200) Please contact us to order |
||||
| 204212R | Test Load | Deflection | |||
| Lb | Kpa | Point A (inch) | Point B (inch) | Point C (inch) | |
| Step 1 | 0 | 0 | 0 | 0 | 0 |
| Step 2 | 1005 | 1.52 | 1.4 | 1.6 | 1.2 |
| Step 3 | 1507 | 2.28 | 2.2 | 2.3 | 1.6 |
| Step 4 | Keep the test load until 30 minutes | ||||
| Step 5 | Remove the test load | 0.6 | 1.1 | 1.2 | |
| Step 6 | The test sample can withstand the applied test load without damage. | ||||
Product Manual
Delivery
Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our
